Features
Specifications
General
Series Name
500 series
Blower Included
Yes
Airflow
600 CFM
Style
Chimney
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Wall Mount
Features
Wi-Fi
Yes
Dishwasher-Proof Filters
Yes
Technologies
Home Connect™
Ducting Information
8" Diameter Of Air Duct
Speeds
4-Stage
Additional Information

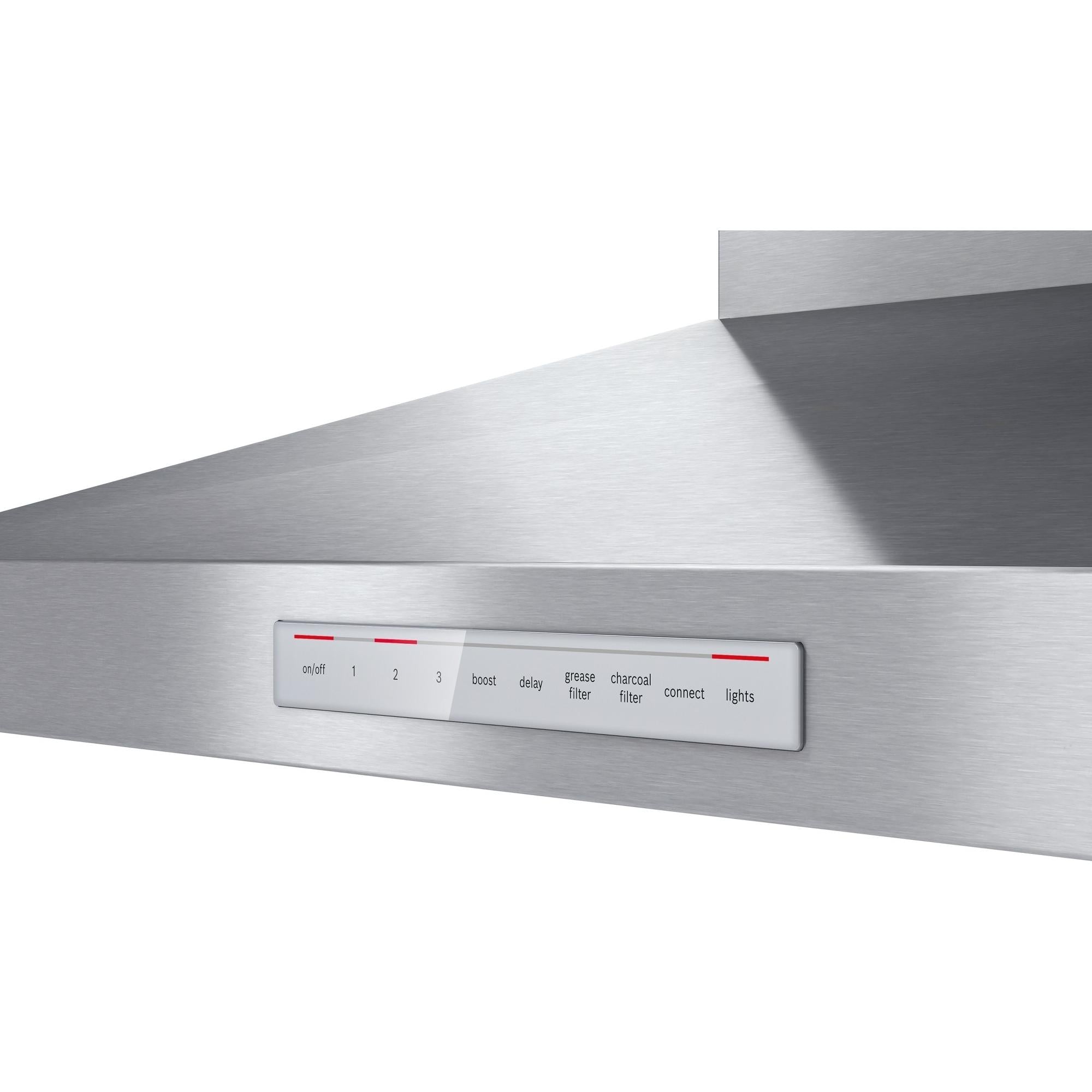

• Touch Controls With LCD Display
• Aluminum Mesh Filters
• Multilayer Cassette Grease Filters
• Sones: 9.9 HS / 4.56 WS
• 2x 80 W Halogen Lights
Electrical Information
Information
• 120 V
• 60 Hz
Accessories
Included
Damper
Optional
• Chimney Extension For 9-11.5 ft. Ceilings: HCPEXT5UC
• Recirculation Kit: HCREC5UC
• Filter Kit: HCIFILTUC
Dimensions
Class Width
36"
Width
36 inch(es) / 91.44 cm
Height
25 inch(es) / 63.5 cm
Depth
19.68 inch(es) / 49.99 cm
Weight
53 lb(s) / 24.04 kg
Additional Dimensions
• Height of the chimney: 19 9/16"–33 7/8" /23 1/4"–42 9/16"
• Required Distance Above Cooktop / Range Cooking Surface: 30" Electric / 30" Gas
Warranty
Warranty
Limited 1 Year Parts And Labor
UPC
UPC#
825225959465
