DESCRIPTION

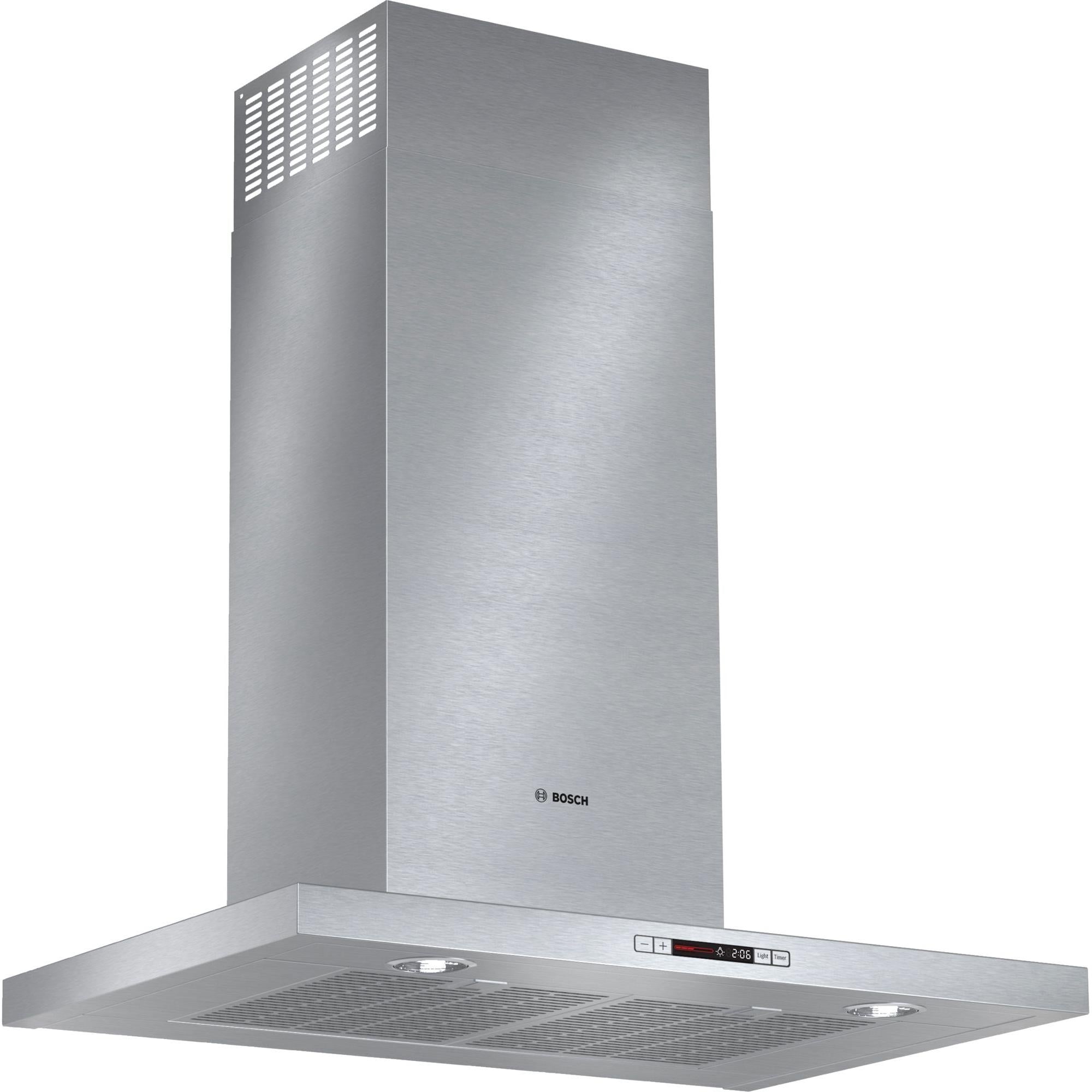

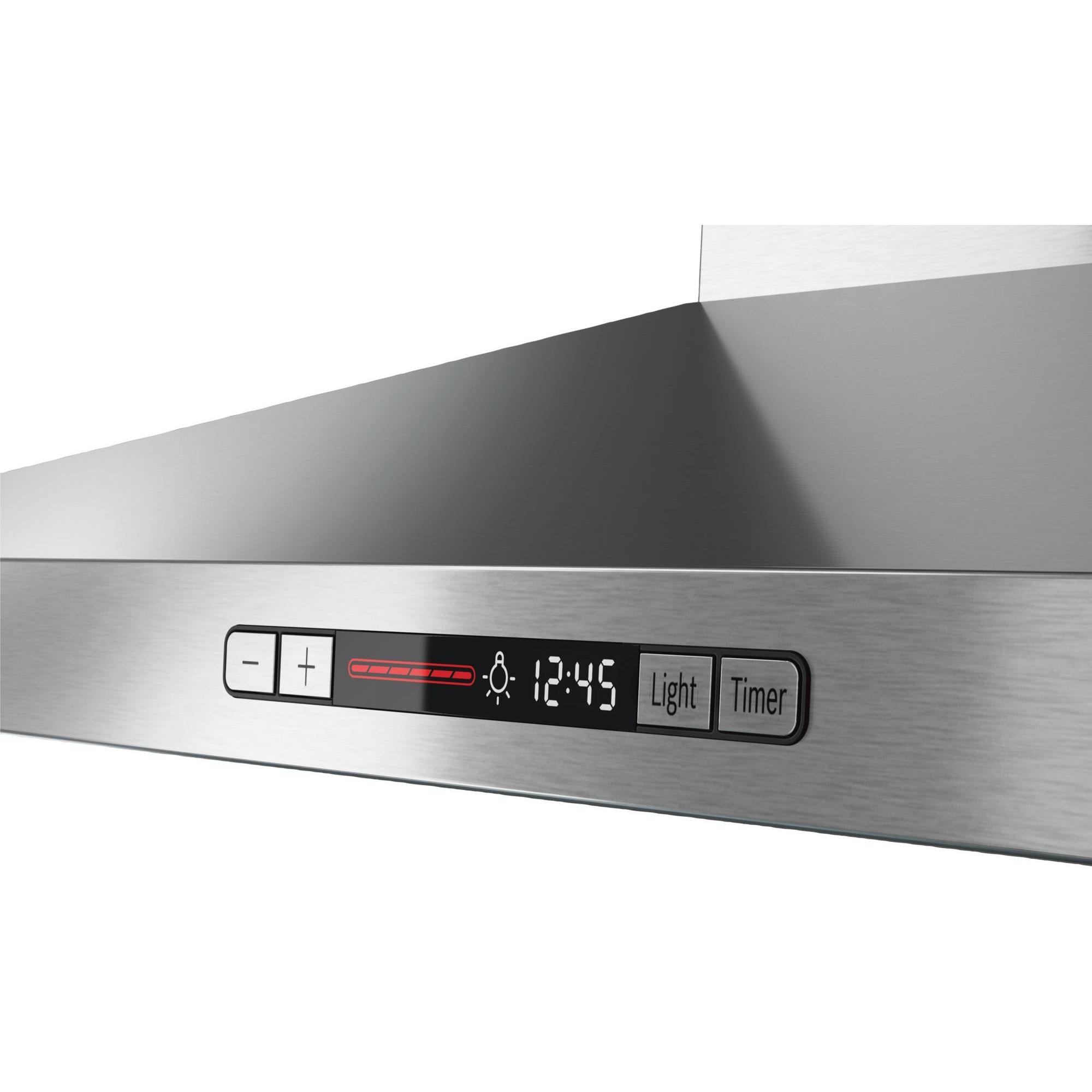

×Bosch 30" 500 Series box canopy chimney hood. This hood features a 600 CFM blower, touch controls with LCD display and four speeds.
SPECIFICATIONS
×
Specifications
General
Series Name
500
Blower Included
Yes
Airflow
600 CFM
Style
Chimney
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Wall Mount
Features
Dishwasher-Proof Filters
Yes
Ducting Information
• 8" round duct at discharge
• Convertable: Ducted / Recirculating
• Duct Extension Accessory Kit Available for 9' to 12' Ceilings
• Convertable: Ducted / Recirculating
• Duct Extension Accessory Kit Available for 9' to 12' Ceilings
Speeds
4 Speeds
Additional Information
• 2 Halogen Lights - 12 Volt, 20 Watt max., G-4 Base
• Blower will automatically turn on at high speed if excessive heat is sensed in the control area
• Absorb odors with charcoal replacement filters
• Convenient timer built into control from 1-60 minutes
• Signal on LCD display will illuminate as a reminder to check filters for cleaning
• Audible tone when select controls are pressed
• Approval certificates: CUL, UL
• Blower will automatically turn on at high speed if excessive heat is sensed in the control area
• Absorb odors with charcoal replacement filters
• Convenient timer built into control from 1-60 minutes
• Signal on LCD display will illuminate as a reminder to check filters for cleaning
• Audible tone when select controls are pressed
• Approval certificates: CUL, UL
Electrical Information
Information
• 530 W
• 110 V
• 60 Hz
• 110 V
• 60 Hz
Accessories
Optional
• HCBEXT5UC Chimney extension for 9-11.5 ft. ceilings
• HCIFILTUC Filter kit
• HCREC5UC Recirculation kit
• HCIFILTUC Filter kit
• HCREC5UC Recirculation kit
Dimensions
Class Width
30"
Width
30 inch(es) / 76.2 cm
Height
27.06 inch(es) / 68.74 cm
Depth
19.69 inch(es) / 50.01 cm
Weight
52.01 lb(s) / 23.59 kg
Additional Dimensions
• Height of the chimney: 25 1/2" - 40 9/16"/25 3/8" - 44 1/4"
• Required distance above cooktop/ranges: 24"/27"
• Required distance above cooktop/ranges: 24"/27"
Shipping Dimensions
Weight
58 lb(s) / 26.31 kg
Warranty
Warranty
Limited 1 year parts and labor
UPC
UPC#
825225909040
