DESCRIPTION

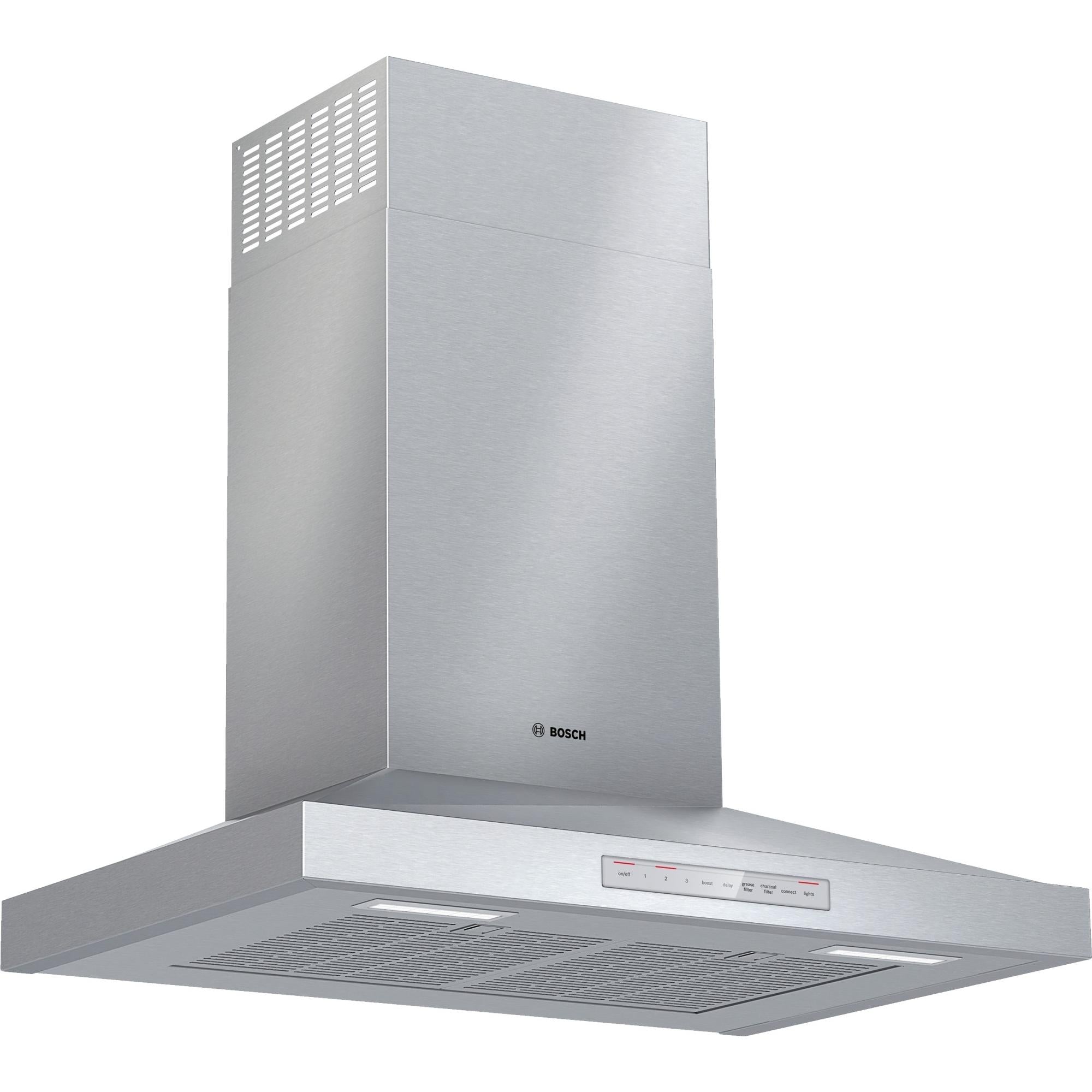

×This Bosch 500 Series 30" pyramid canopy chimney hood features Home Connect, 4-speed power level options, LCD touch display controls and dishwasher safe aluminum mesh filters.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Series Name
500 Series
Blower Included
Yes
Airflow
600 CFM
Style
Chimney
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Wall Mount
Features
Wi-Fi
Yes
Dishwasher-Proof Filters
Yes
Technologies
Home Connect™
Ducting Information
8" Diameter of Air Duct
Speeds
4-Speeds
Additional Information

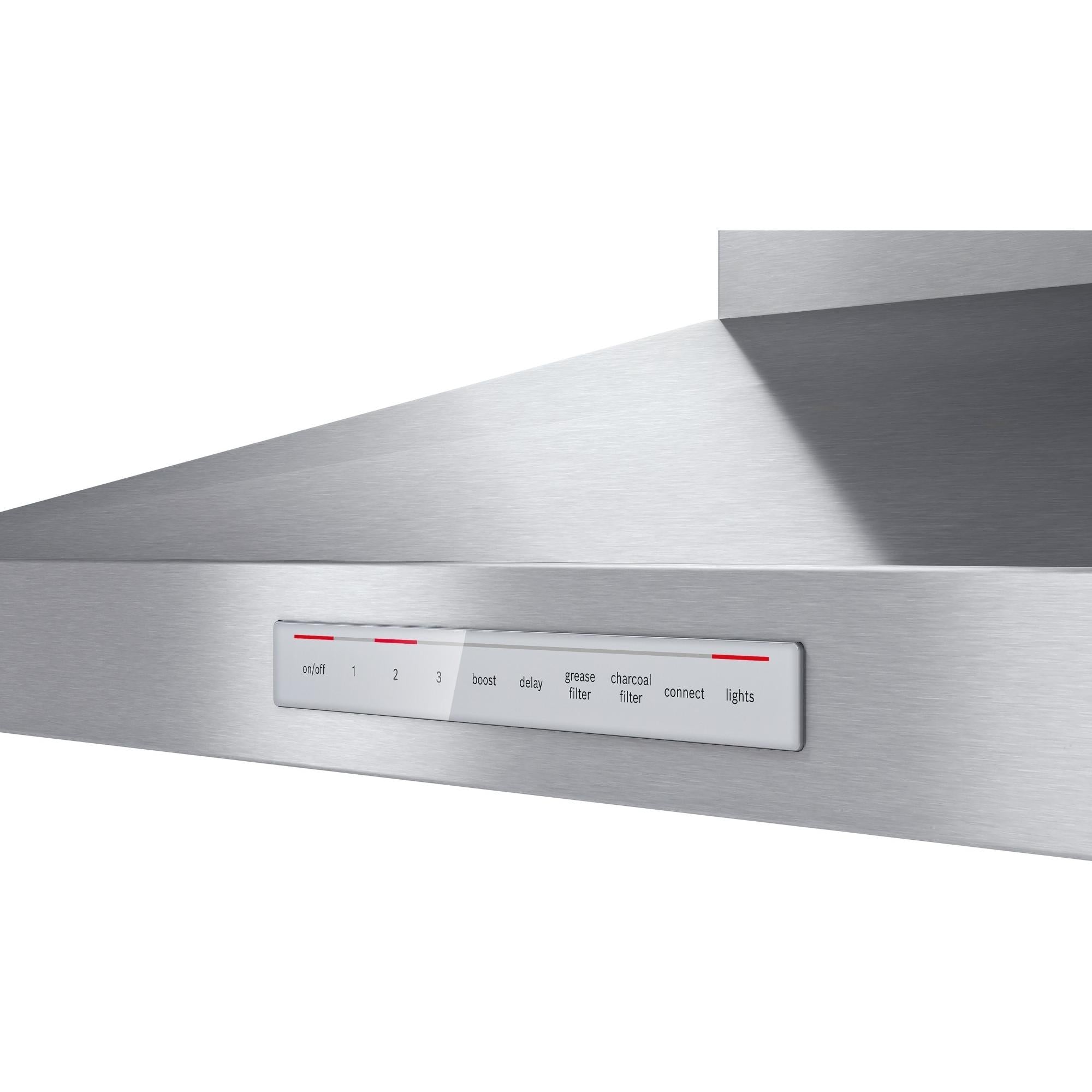

• Touch Controls With LCD Display
• Aluminum Mesh Filters
• Multilayer Cassette Grease Filters
• Sones: 9.9 HS / 4.56 WS
• 2x 80 W Halogen Lights
• Aluminum Mesh Filters
• Multilayer Cassette Grease Filters
• Sones: 9.9 HS / 4.56 WS
• 2x 80 W Halogen Lights
Electrical Information
Information
• 120 V
• 60 Hz
• 60 Hz
Accessories
Included
Damper
Optional
• Chimney Extension For 9-11.5 ft. Ceilings: HCPEXT5UC
• Recirculation Kit: HCREC5UC
• Filter Kit: HCIFILTUC
• Recirculation Kit: HCREC5UC
• Filter Kit: HCIFILTUC
Dimensions
Class Width
30"
Width
30 inch(es) / 76.2 cm
Height
25 inch(es) / 63.5 cm
Depth
19.68 inch(es) / 49.99 cm
Weight
49.01 lb(s) / 22.23 kg
Additional Dimensions
• Height of the Chimney: 19 9/16"–33 7/8" /23 1/4"–42 9/16"
• Required Distance Above Cooktop / Range Cooking Surface: 30" Electric / 30" Gas
• Required Distance Above Cooktop / Range Cooking Surface: 30" Electric / 30" Gas
Warranty
Warranty
Limited 1 Year Parts and Labor
UPC
UPC#
825225959458
