DESCRIPTION

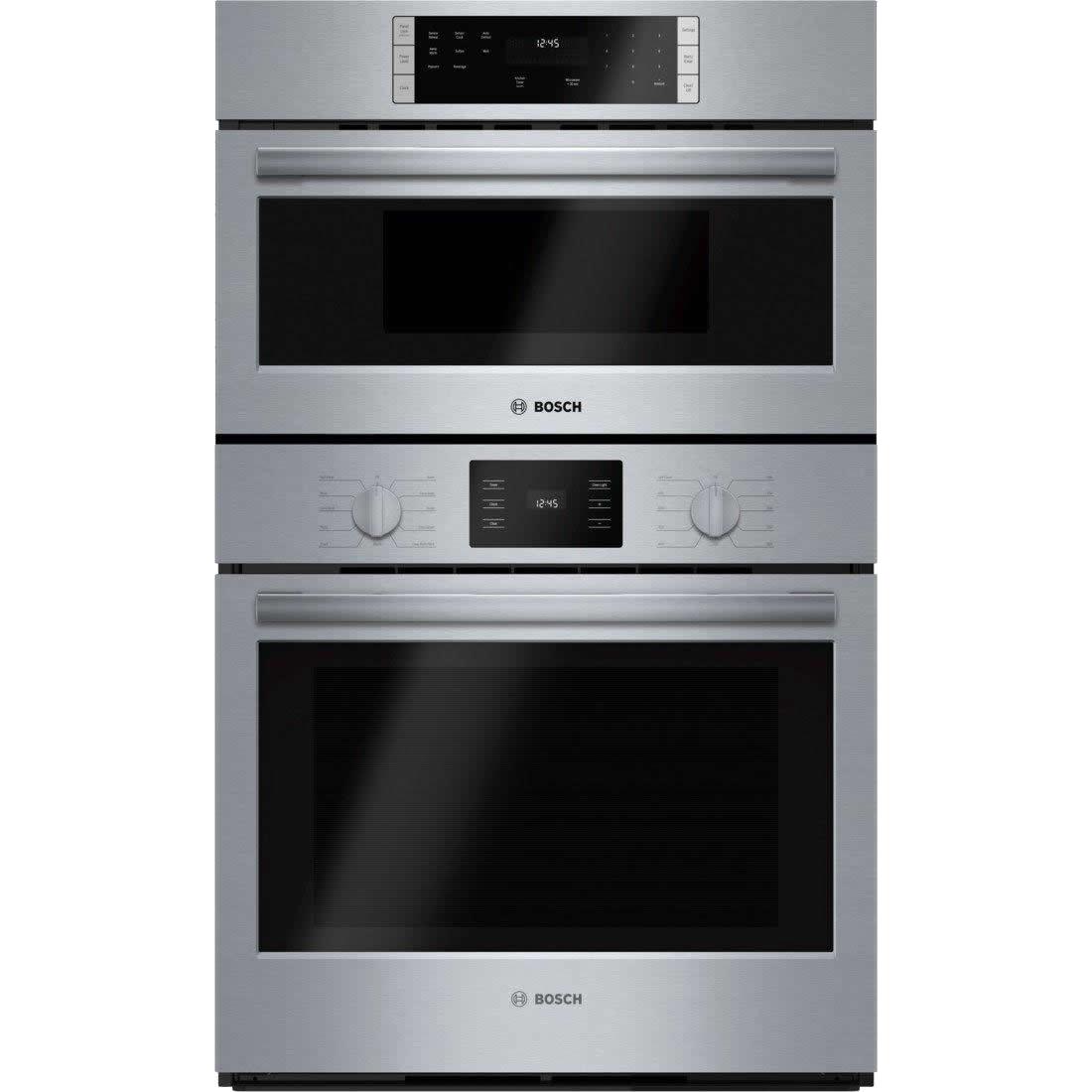

×Bosch 30" microwave wall combination oven featuring Genuine European Convection, specialized cooking modes and a self-cleaning lower oven.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Series Name
500
Fuel Type
Electric
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Combination With
Microwave
Total Capacity
6.2 cu. ft.
Main Oven Capacity
4.6 cu. ft.
Appliance Care
EcoClean™ 2-Hour Self-Clean Cycle
Oven Specifications
Technologies
• Genuine European Convection
• EcoClean™
• EcoClean™
Programs
• Bake
• Variable Broil (hi & low)
• Roast
• Warm
• Sabbath
• Proof Dough
• Convection Bake
• Convection Broil
• Convection Roast
• Pizza
• Multi Rack Genuine European Convection
• Convection Conversion
• Variable Broil (hi & low)
• Roast
• Warm
• Sabbath
• Proof Dough
• Convection Bake
• Convection Broil
• Convection Roast
• Pizza
• Multi Rack Genuine European Convection
• Convection Conversion
Clock
Yes
Control Lock
Yes
Convection
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Bake / broil element (lower cavity): 2,400 / 3,800 W
• Convection element (lower cavity): 2,000 W
• Convection element (lower cavity): 2,000 W
Microwave
Capacity
1.6 cu. ft.
Power
950 W
Power Levels
10
Additional Information
• Baked Potato
• Sweet Potato
• Fresh Vegetable
• Frozen Vegetable
• Ground Meat
• Fish/Seafood
• Brown Rice
• White Rice
• Frozen Entrees
• Reheat
• Popcorn
• Beverage
• Melt/Soften
• Defrost
• Sweet Potato
• Fresh Vegetable
• Frozen Vegetable
• Ground Meat
• Fish/Seafood
• Brown Rice
• White Rice
• Frozen Entrees
• Reheat
• Popcorn
• Beverage
• Melt/Soften
• Defrost
Certifications
Certifications
Star-K certified 100° F - 450° F
Electrical Information
Information
• 240 / 208 V
• 60 Hz
• 40 A
• 60 Hz
• 40 A
Accessories
Included
• Upper Oven: Glass Turntable
• Lower Oven: 3 Standard Racks
• Lower Oven: 3 Standard Racks
Optional
HEZTR301: 30" Telescopic Rack
Dimensions
Class Width
30"
Width
29.75 inch(es) / 75.57 cm
Height
49 inch(es) / 124.46 cm
Depth
24.5 inch(es) / 62.23 cm
Additional Dimensions
• Required cutout size for standard installation (HxWxD) (in): 48 5/8" x 28 1/2" x 23 1/2"
• Required cutout size for flush installation (HxWxD) (in): 49 1/8" x 30" x 24 1/2"
• Overall upper oven interior dimensions (HxWxD) (in.): 9 7/8" x 16 1/2" x 16 1/2"
• Glass Turntable Max. Cookware (upper): 14 1/8" dia.
• Overall lower oven interior dimensions (HxWxD) (in): 17 13/16" x 24 1/8" x 18"
• Usable lower oven interior dimensions (HxWxD) (in): 12 5/16" x 23 1/4" x 15 1/4"
• Required cutout size for flush installation (HxWxD) (in): 49 1/8" x 30" x 24 1/2"
• Overall upper oven interior dimensions (HxWxD) (in.): 9 7/8" x 16 1/2" x 16 1/2"
• Glass Turntable Max. Cookware (upper): 14 1/8" dia.
• Overall lower oven interior dimensions (HxWxD) (in): 17 13/16" x 24 1/8" x 18"
• Usable lower oven interior dimensions (HxWxD) (in): 12 5/16" x 23 1/4" x 15 1/4"
Weight
295.99 lb(s) / 134.26 kg
Shipping Dimensions
Width
34 inch(es) / 86.36 cm
Height
55.75 inch(es) / 141.61 cm
Depth
31.5 inch(es) / 80.01 cm
Weight
328 lb(s) / 148.78 kg
Warranty
Warranty
Limited 1 year parts and labor
UPC
UPC#
825225928690
