DESCRIPTION

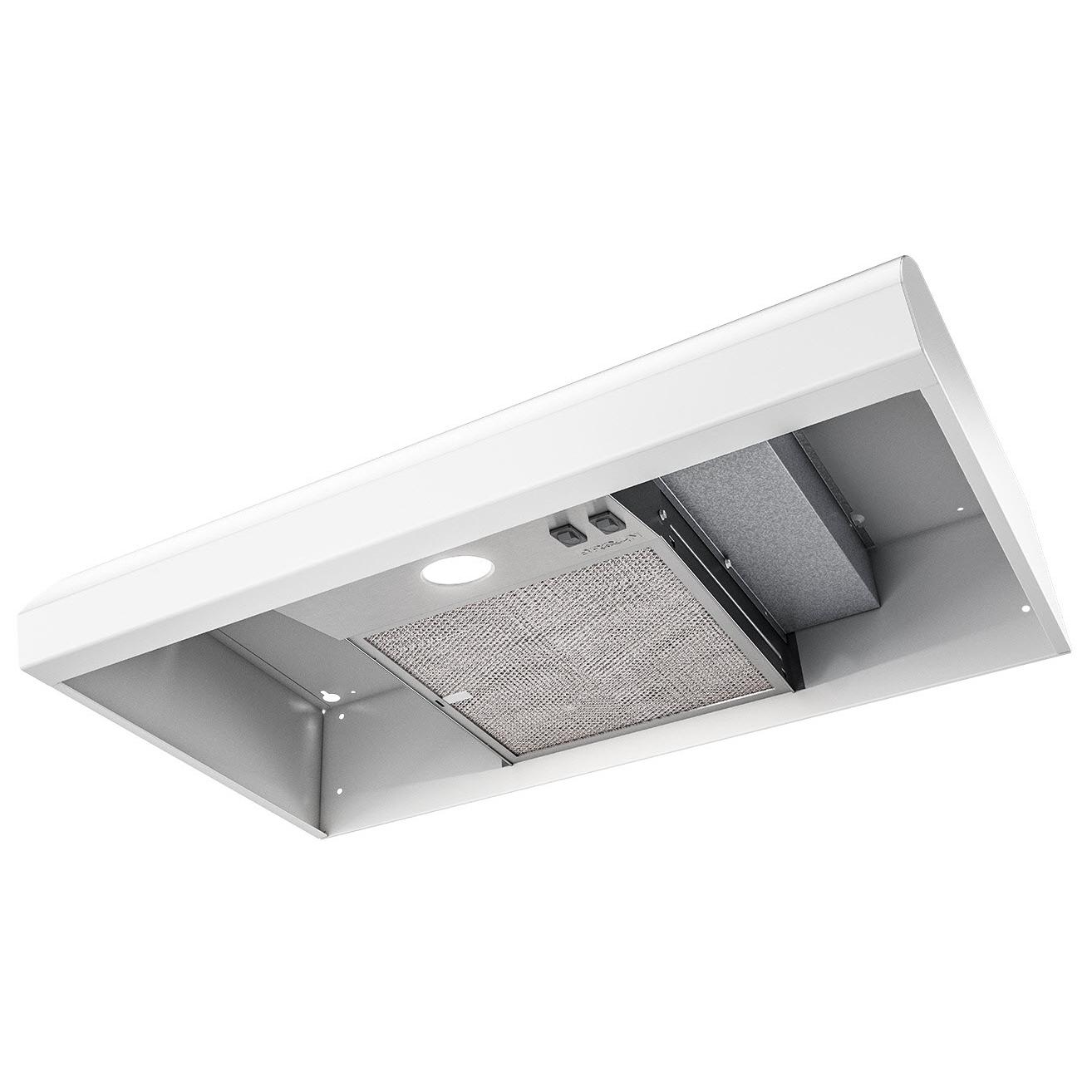

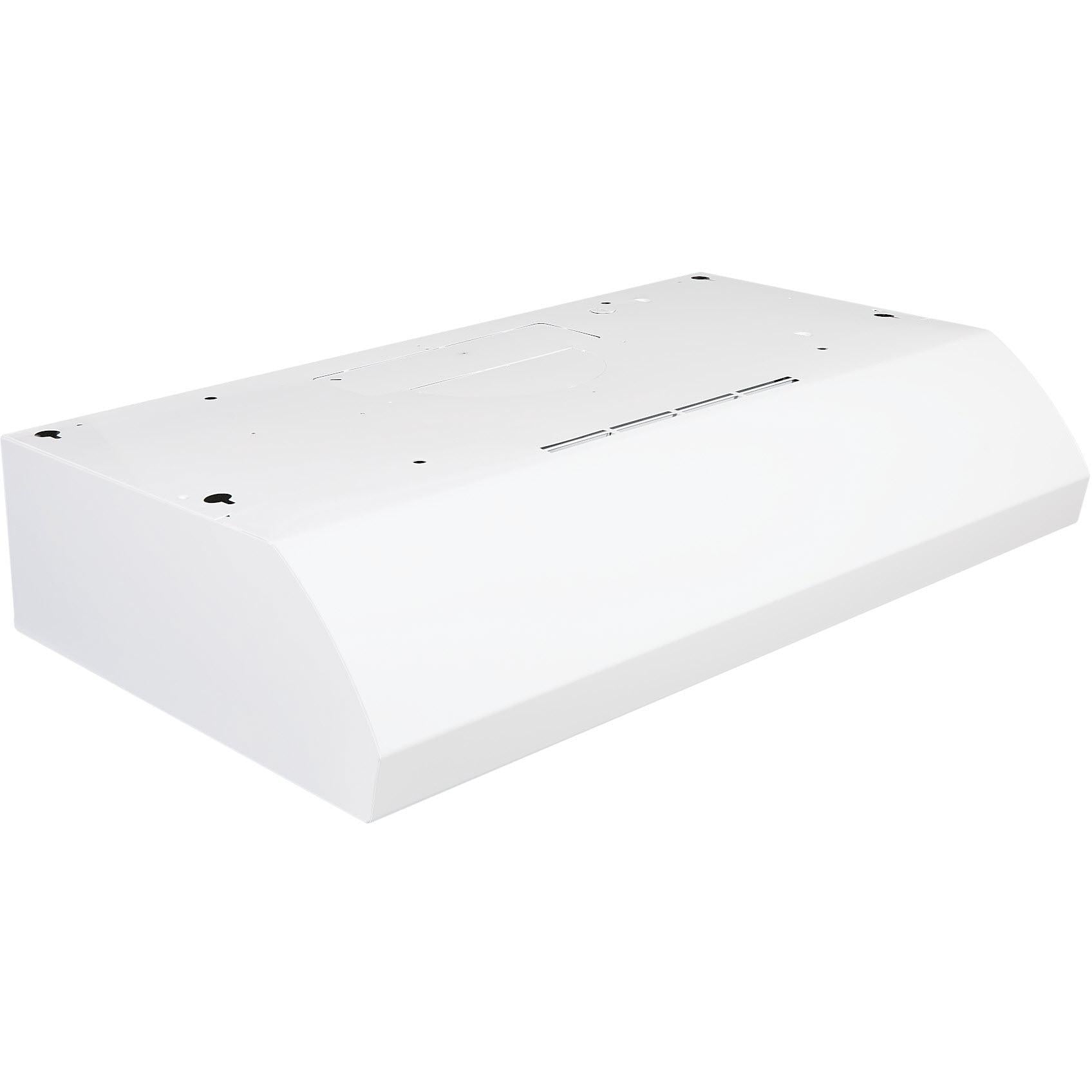

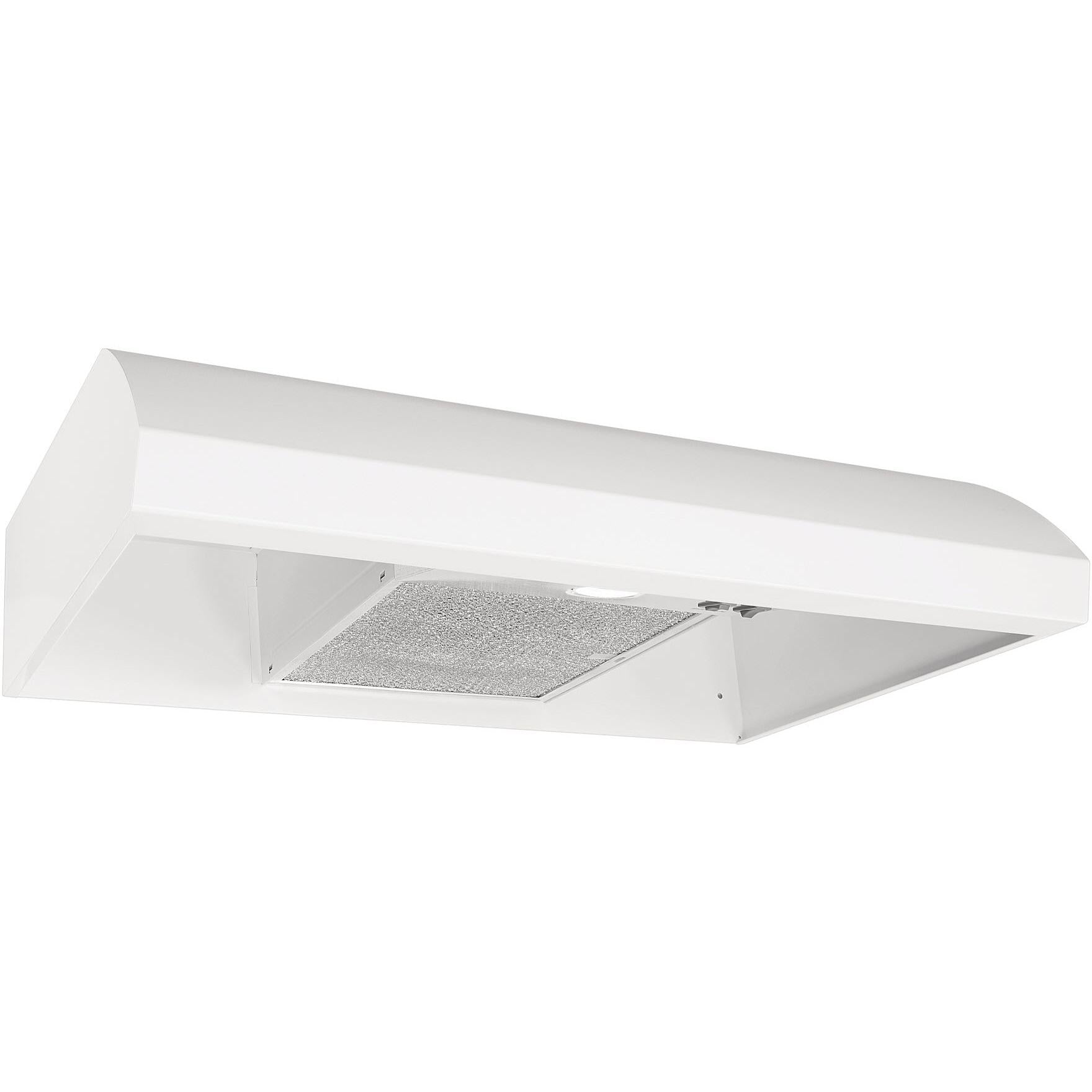

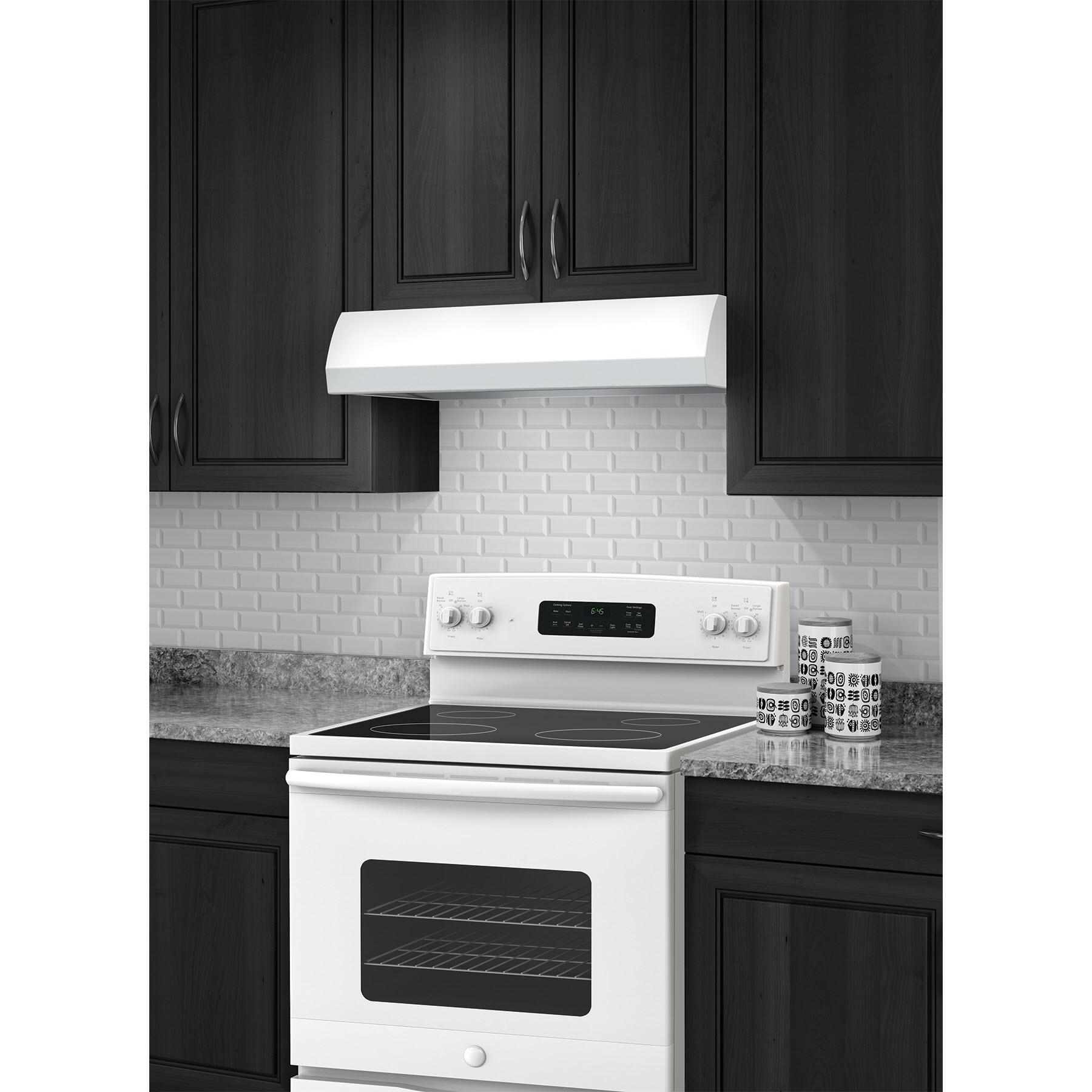

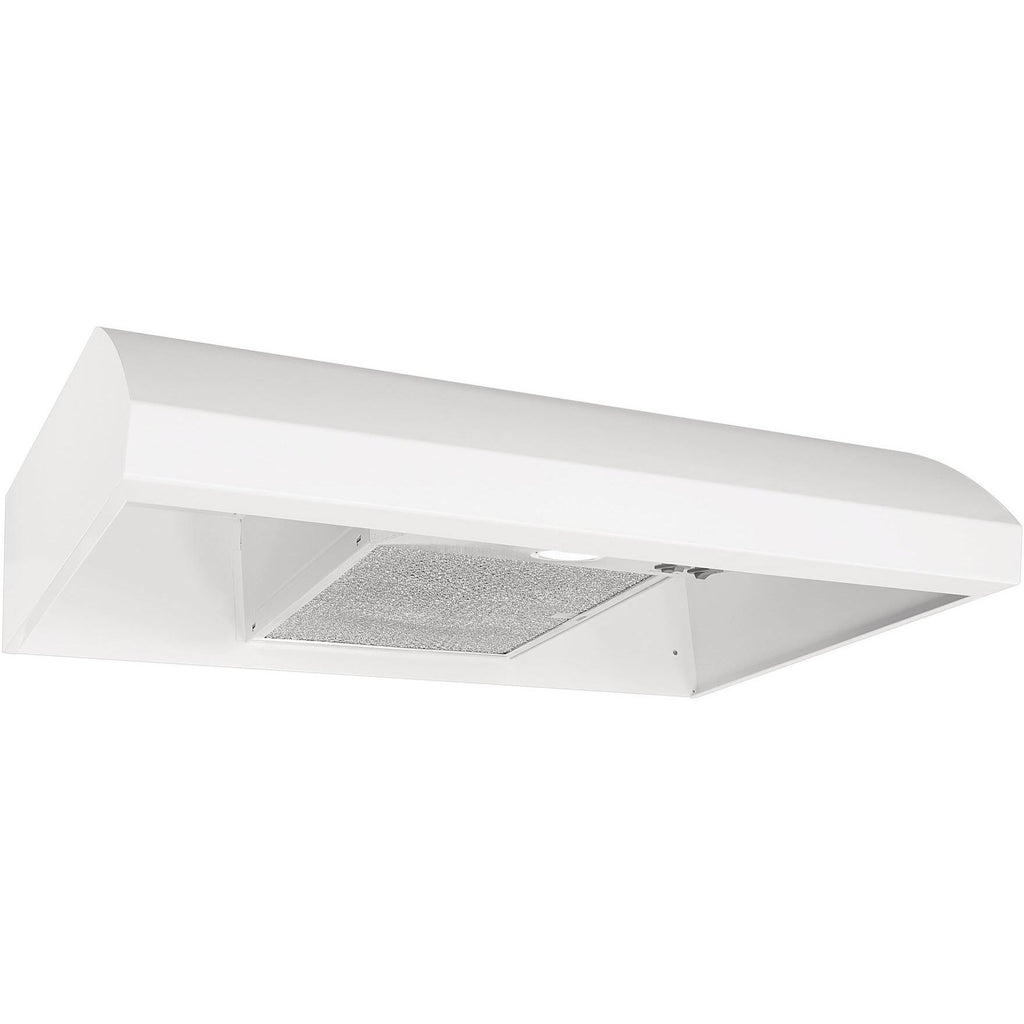

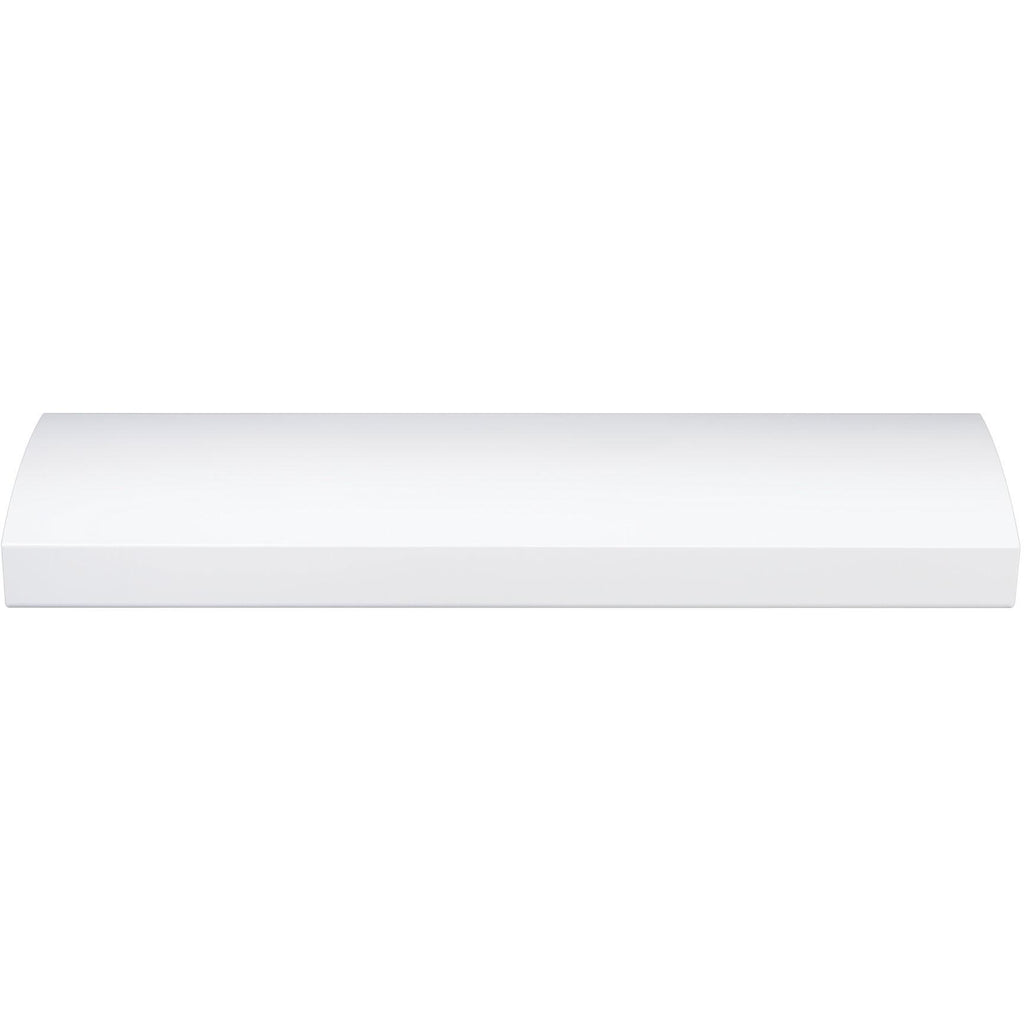

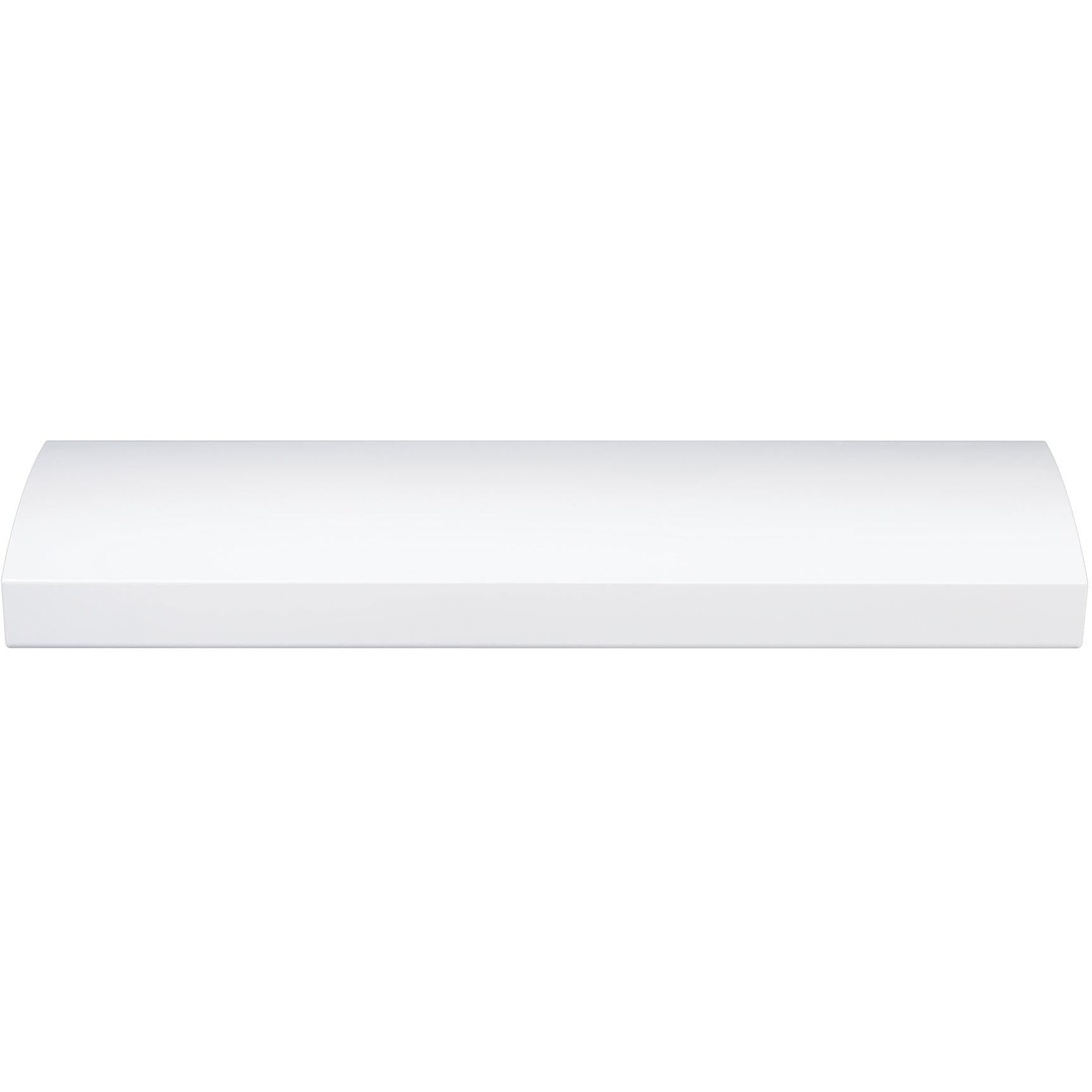

×The BXT1 Series Kitchen Exhaust Ventilation Range Hood offers a transitional style with gently round surfaces that make it a great choice for today’s contemporary kitchens. The clean design uses hidden rocker controls to make operation easy and convenient for any user. The hood includes easy to clean features like a large dishwasher-safe filter, fully integrated light panel and top-oriented recirculation louvers. The one-level lighting system includes a bright LED bulb to illuminate the cooktop. Four-Way convertibility provides flexible, easy installation options.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Series Name
BXT1
Blower Included
Yes
Airflow
270 CFM
Style
Standard
Color
White
Manufacturer Color
White
Installation
Under-Cabinet
Features
Dishwasher-Proof Filters
Yes
Ducting Information
7" Round
Speeds
2-speed rocker switch
Additional Information
• One-level lighting system includes a bright LED bulb to illuminate the cooking surface (bulb included)
• The 4-way convertibility of this hood provides flexible installation for use in either ducted or non-ducted applications. Discrete recirculation louvers are hidden at the top of the hood, which helps to provide a smooth, clean appearance
• Aluminum mesh filter
• ADA compliant
• The 4-way convertibility of this hood provides flexible installation for use in either ducted or non-ducted applications. Discrete recirculation louvers are hidden at the top of the hood, which helps to provide a smooth, clean appearance
• Aluminum mesh filter
• ADA compliant
Electrical Information
Information
120 V
Certifications and Approvals
Hvi Certified
Yes
Accessories
Optional
• 7 in. round BP87Q damper
• Charcoal filter HPFX1
• Power Cord Kit SHCK44
• Charcoal filter HPFX1
• Power Cord Kit SHCK44
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
6 inch(es) / 15.24 cm
Depth
15 inch(es) / 38.1 cm
Warranty
Warranty
1 Year
