DESCRIPTION

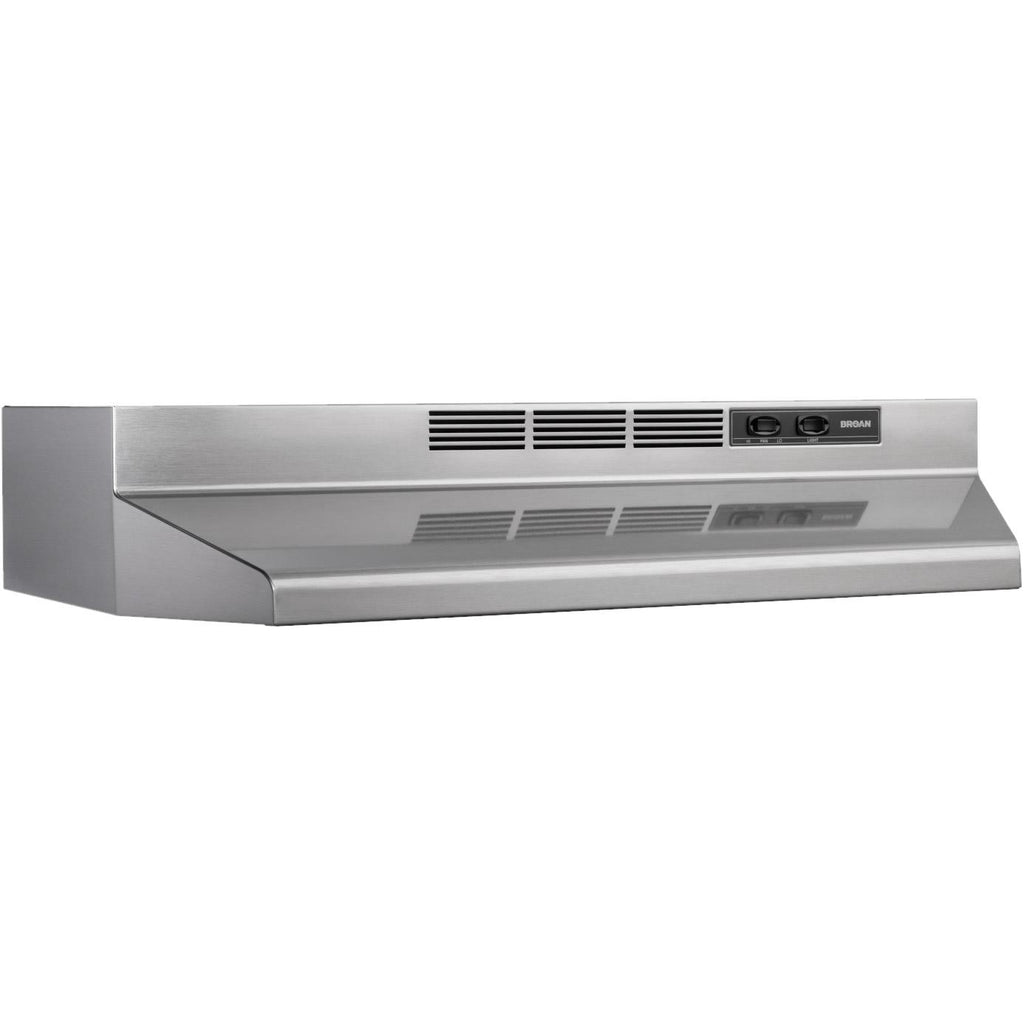

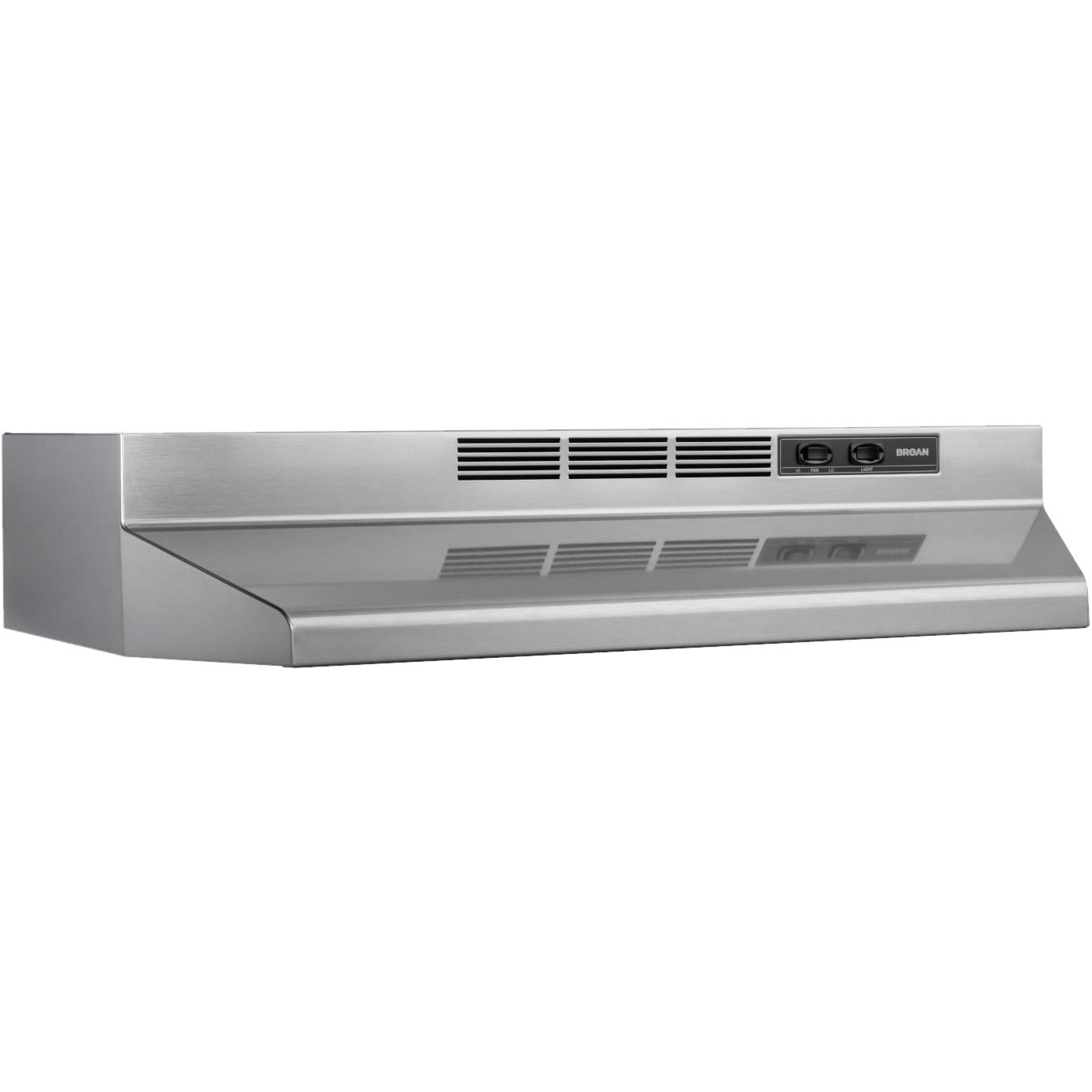

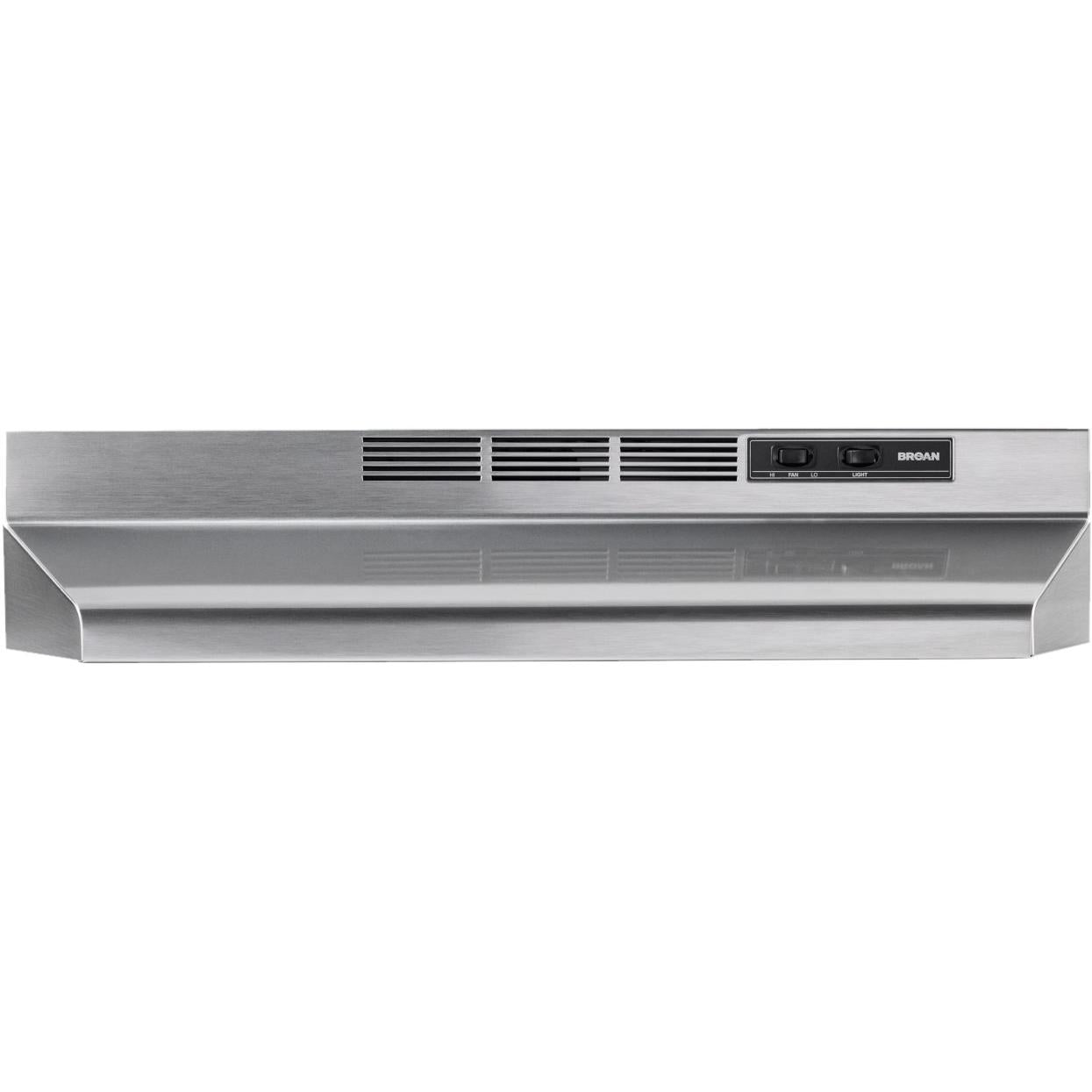

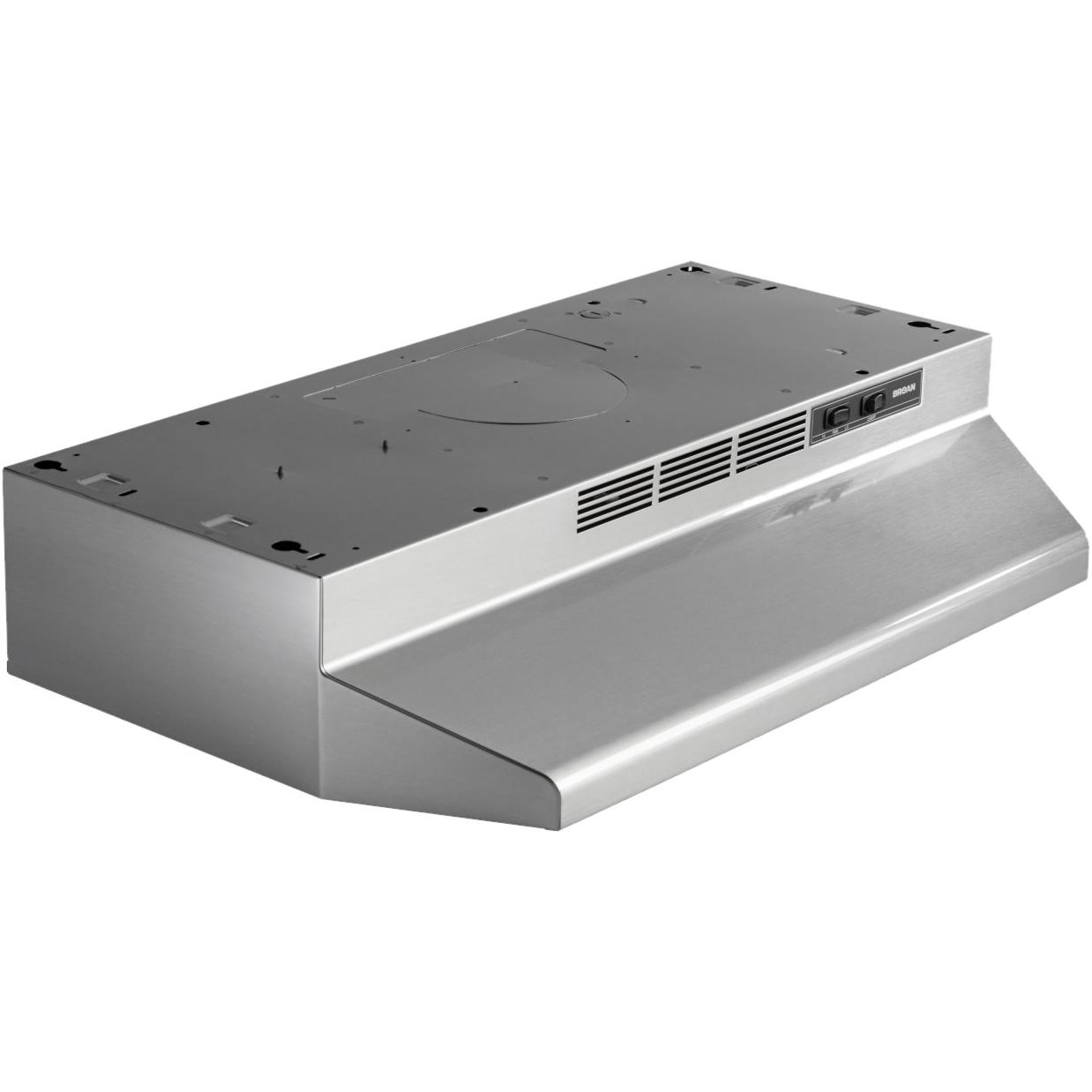

×Range Hood, Under-Cabinet, Under-Cabinet, 24" Exterior Width, 210 CFM, Outside / Ducting, Incandescent, Aluminum Mesh, Stainless Steel colour.
SPECIFICATIONS
×
Specifications
General
Series Name
BU2 Series
Airflow
160 CFM
Style
Standard
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Under-Cabinet
Features
Ducting Information
Duct Direction: Horizontal/Vertical
Additional Information
Lighting Type: Incandescent
Light Bulb Wattage:75
Made of Steel
Switch Control Type: Rocker
Minimum Height Above Cook Top: 18
Grease Filter: Aluminum
Electrical Information
Information
• 120 V
• 60 Hz
• 2.5 AMPS
• 60 Hz
• 2.5 AMPS
Accessories
Optional
• 3¼ in. x 10 in. to 6-in. Round Duct Transition - 411
• 7-in. Round Damper - BP87Q
• 7-in. Round Adapter Plate - SR680508
• 7-in. Round Damper - BP87Q
• 7-in. Round Adapter Plate - SR680508
Dimensions
Class Width
24"
Width
24 inch(es) / 60.96 cm
Height
6 inch(es) / 15.24 cm
Depth
17.5 inch(es) / 44.45 cm
Warranty
Warranty
1 Year
