DESCRIPTION

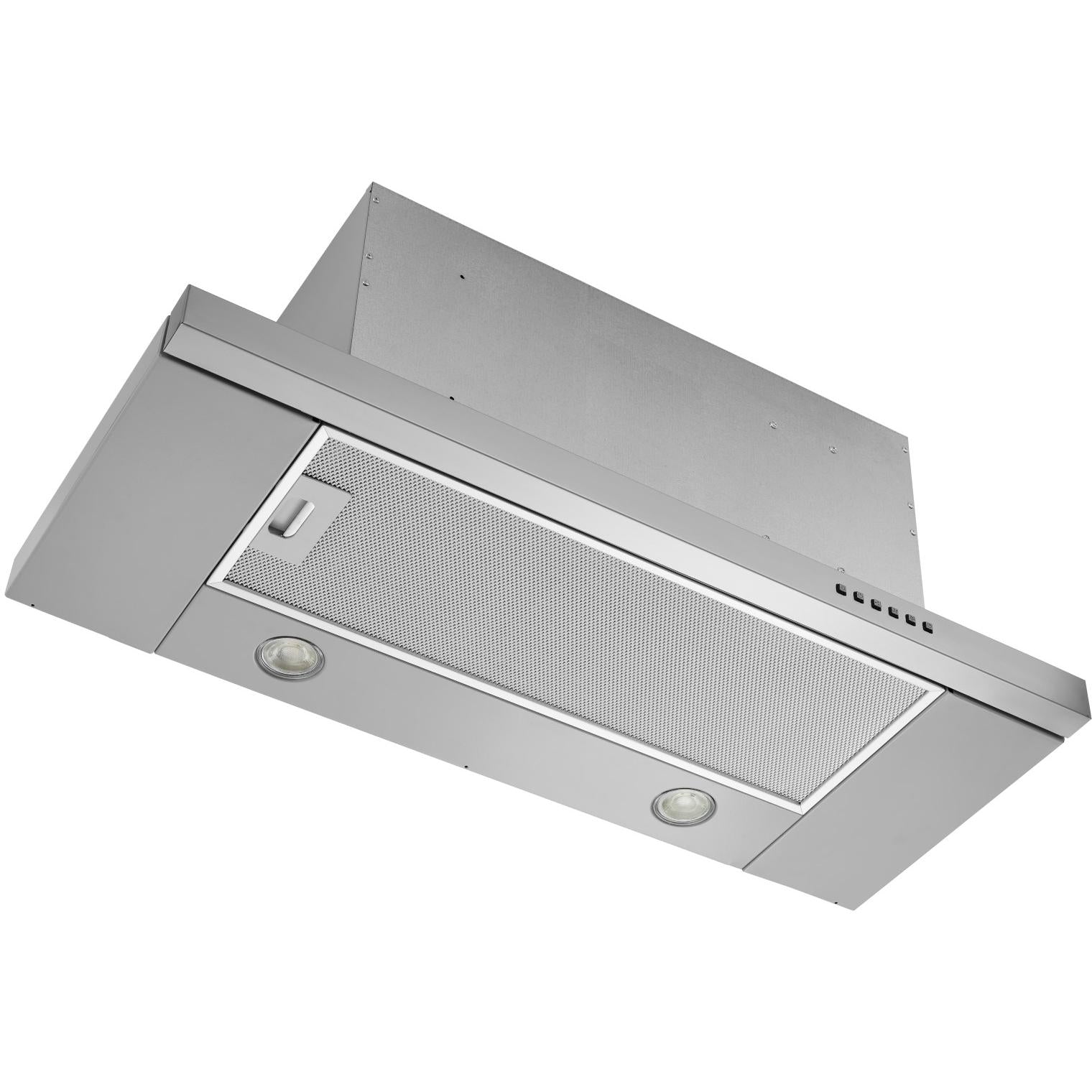

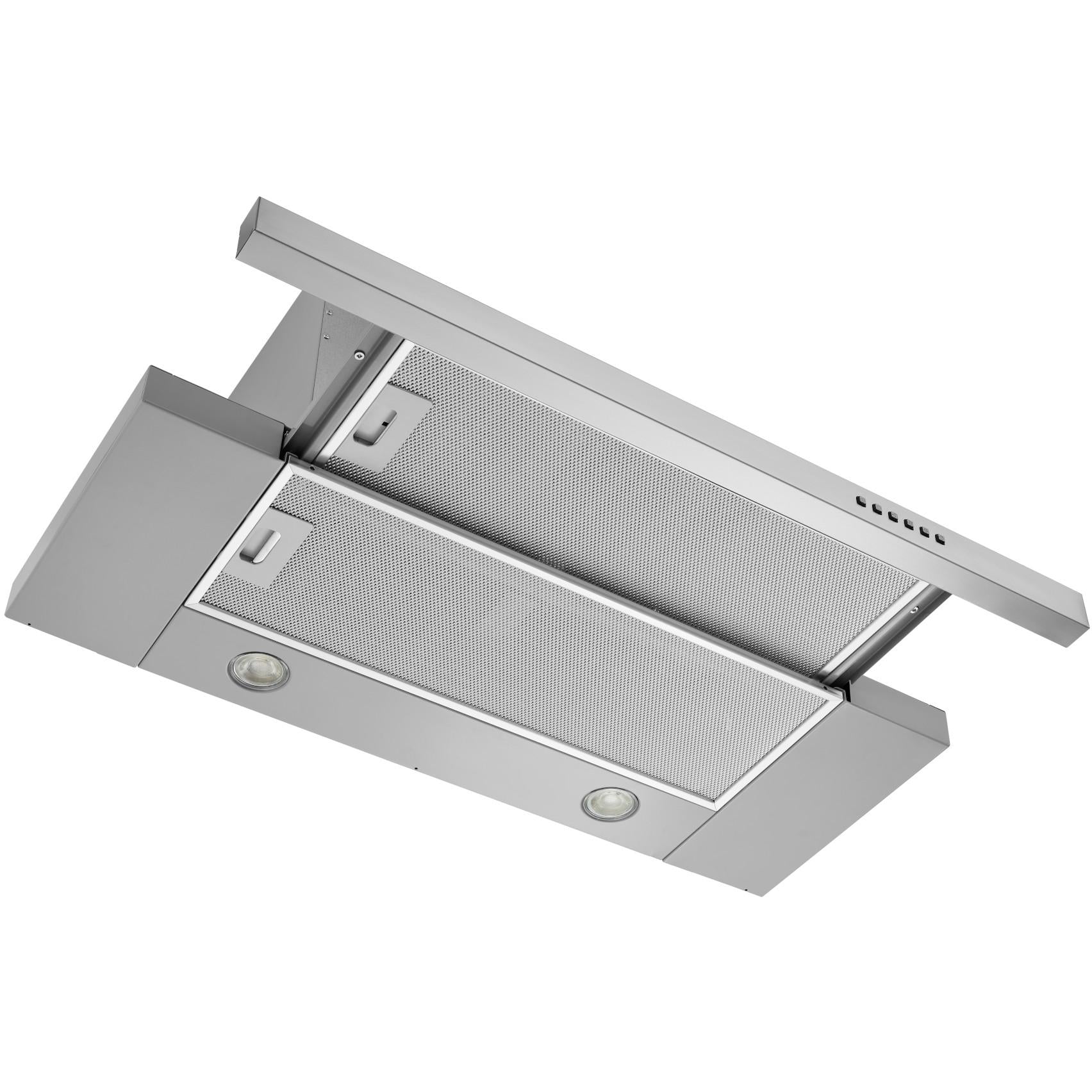

×The Broan® Elite EBS1 Series of Slide-out Range Hood is a European design that mounts into a cabinet above the cooktop with only a slim sliding drawer visible, fitting seamlessly into today’s modern kitchen. The easy to clean design features bright LED lighting, powerful 400 CFM Max blower speed, while remaining quiet at 1.2 sones at normal speed.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Series Name
• Broan® Elite
• EBS1
• EBS1
Blower Included
Yes
Airflow
400 CFM
Style
Slide-Out
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Slide-Out
Features
Dishwasher-Proof Filters
Yes
Ducting Information
6" Round - Vertical
Speeds

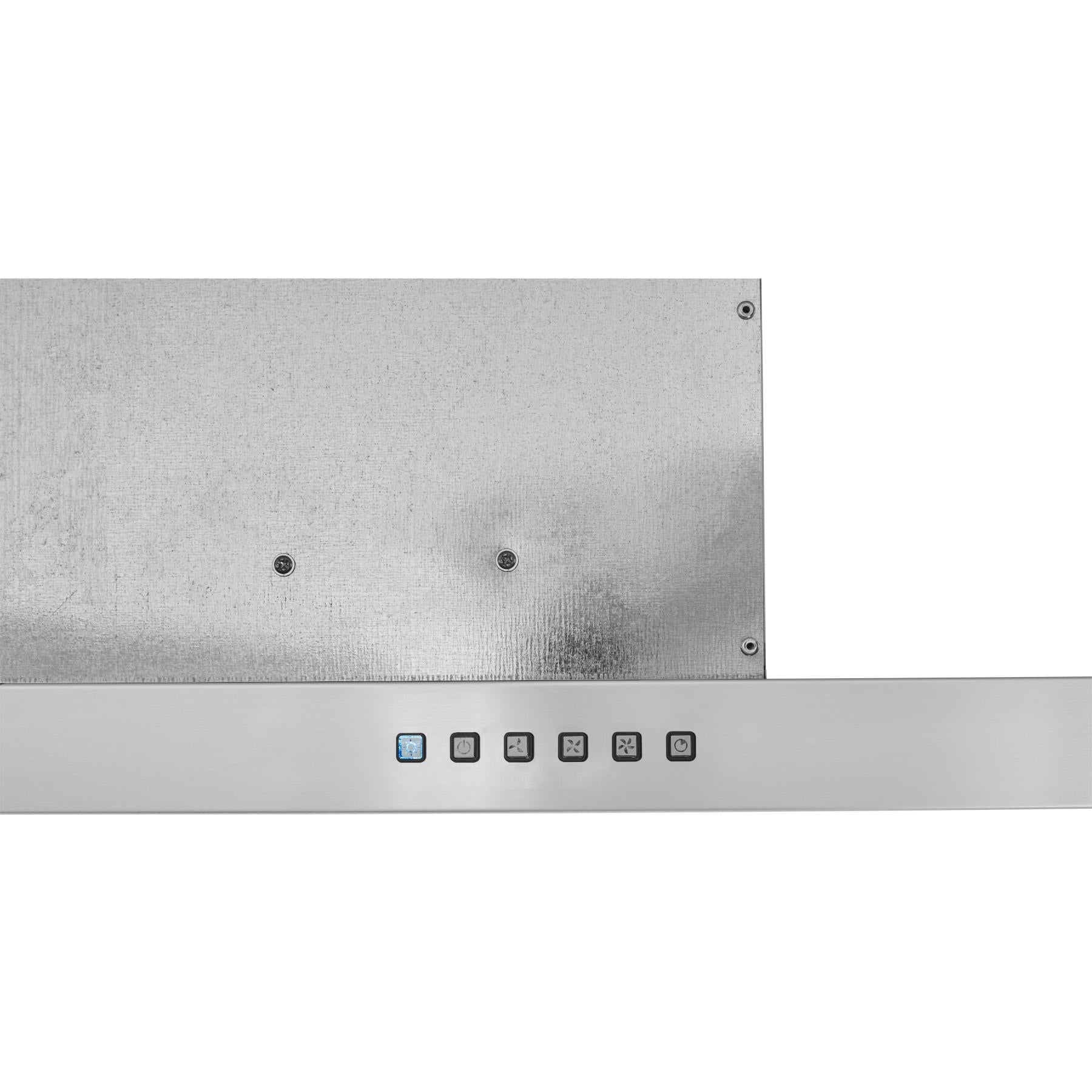

3-speed Mechanical push-button
Additional Information
• Quiet operation at 1.2 sone at normal speed, comparable to a whisper
• Bright 1-level LED modules (2)
• Dishwasher-safe micro mesh filters featuring a quick-release latch for an easy removal
• Filter Clean Reminder
• 10 minute delay off setting
• Intended for installation into frameless cabinets only
• Bright 1-level LED modules (2)
• Dishwasher-safe micro mesh filters featuring a quick-release latch for an easy removal
• Filter Clean Reminder
• 10 minute delay off setting
• Intended for installation into frameless cabinets only
Electrical Information
Information
120 V, 60 Hz - 3.6 AMPS
Certifications and Approvals
Hvi Certified
Yes
Information
UL listed
Accessories
Optional

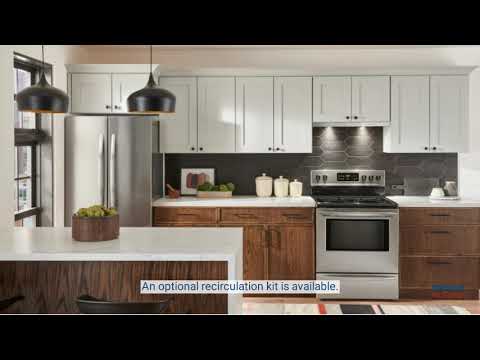

Optional non-duct kit available, sold separately (S1104971)
Dimensions
Class Width
24"
Width
23.56 inch(es) / 59.85 cm
Height
10.56 inch(es) / 26.83 cm
Depth
18.98 inch(es) / 48.2 cm
Warranty
Warranty
1-Year parts and labor
