DESCRIPTION

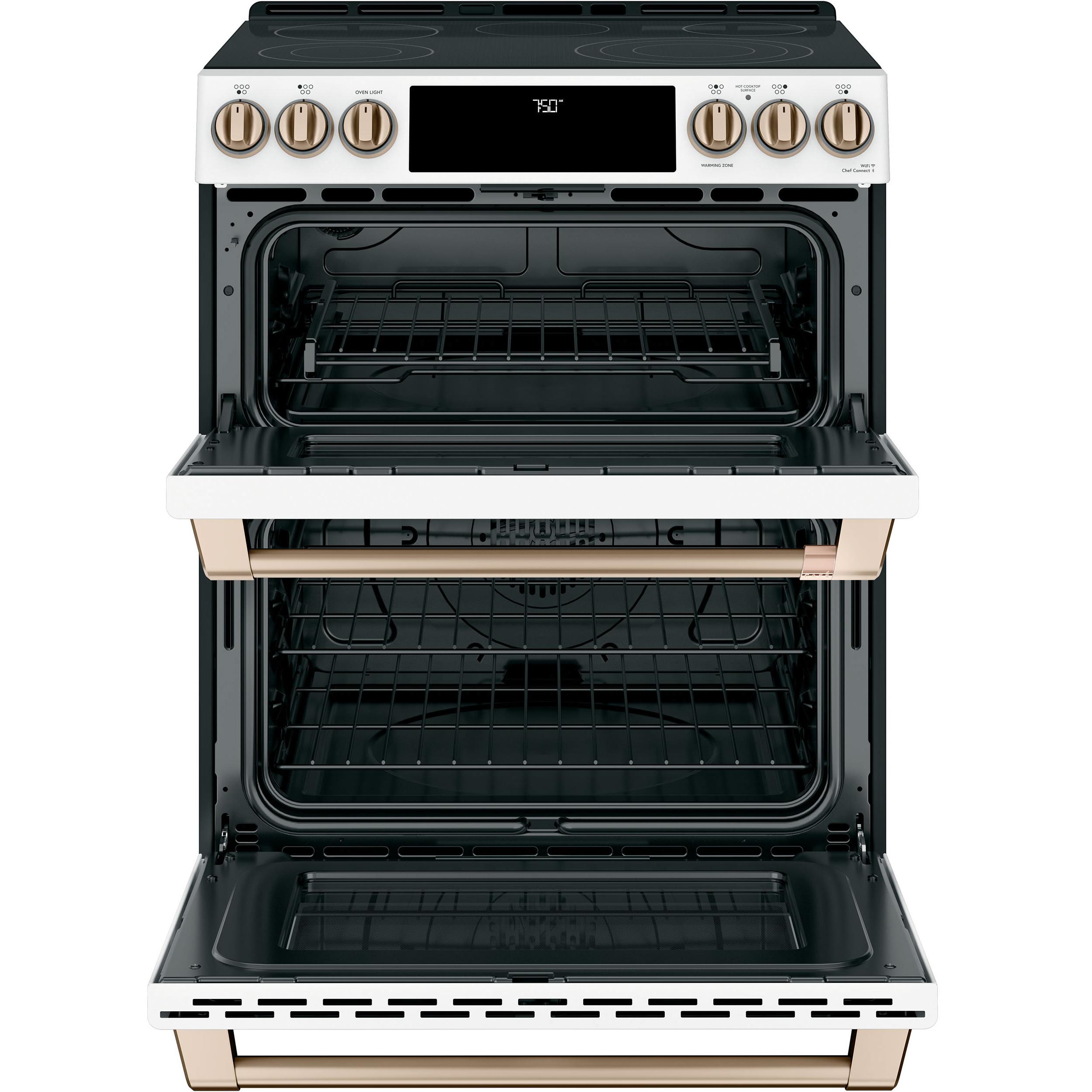

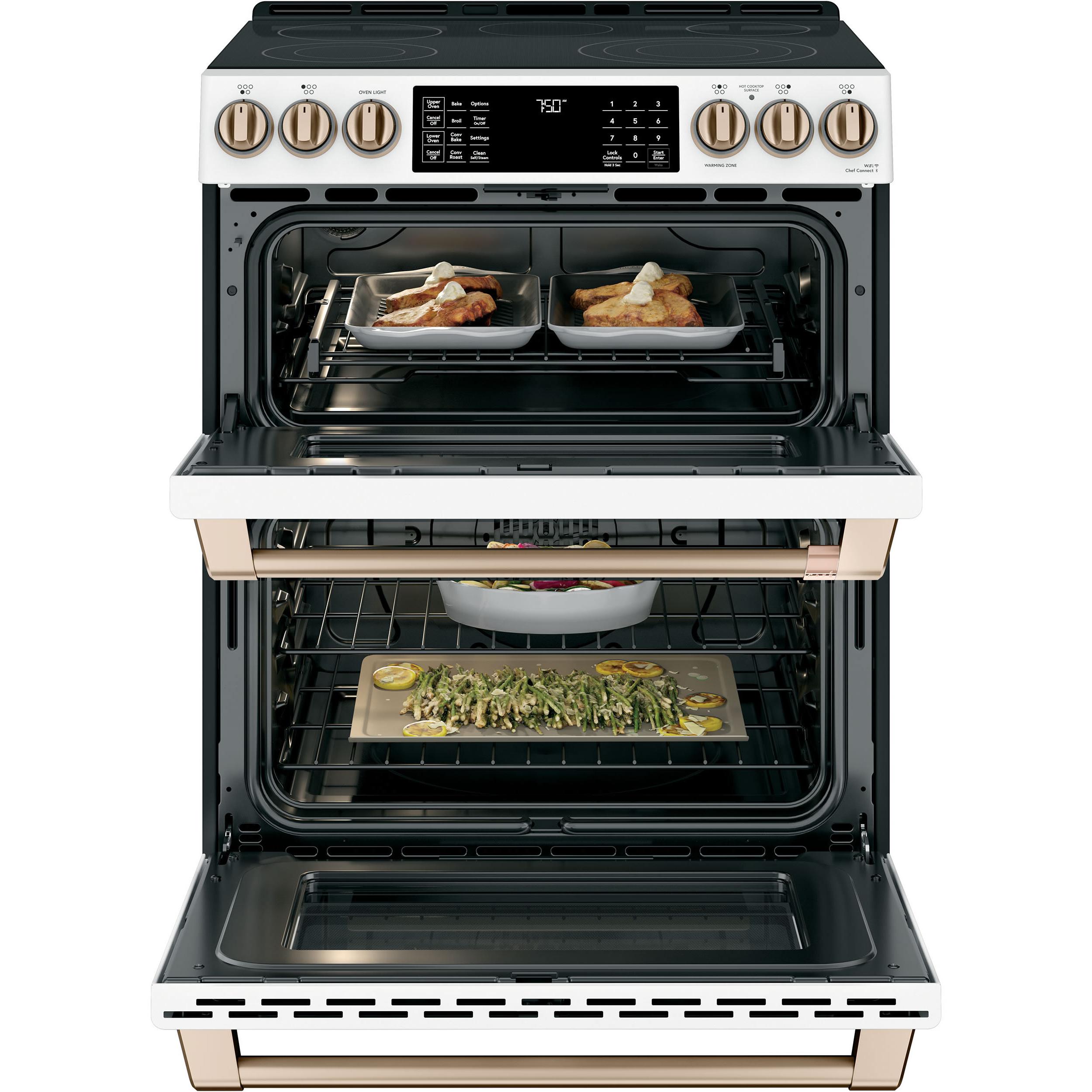

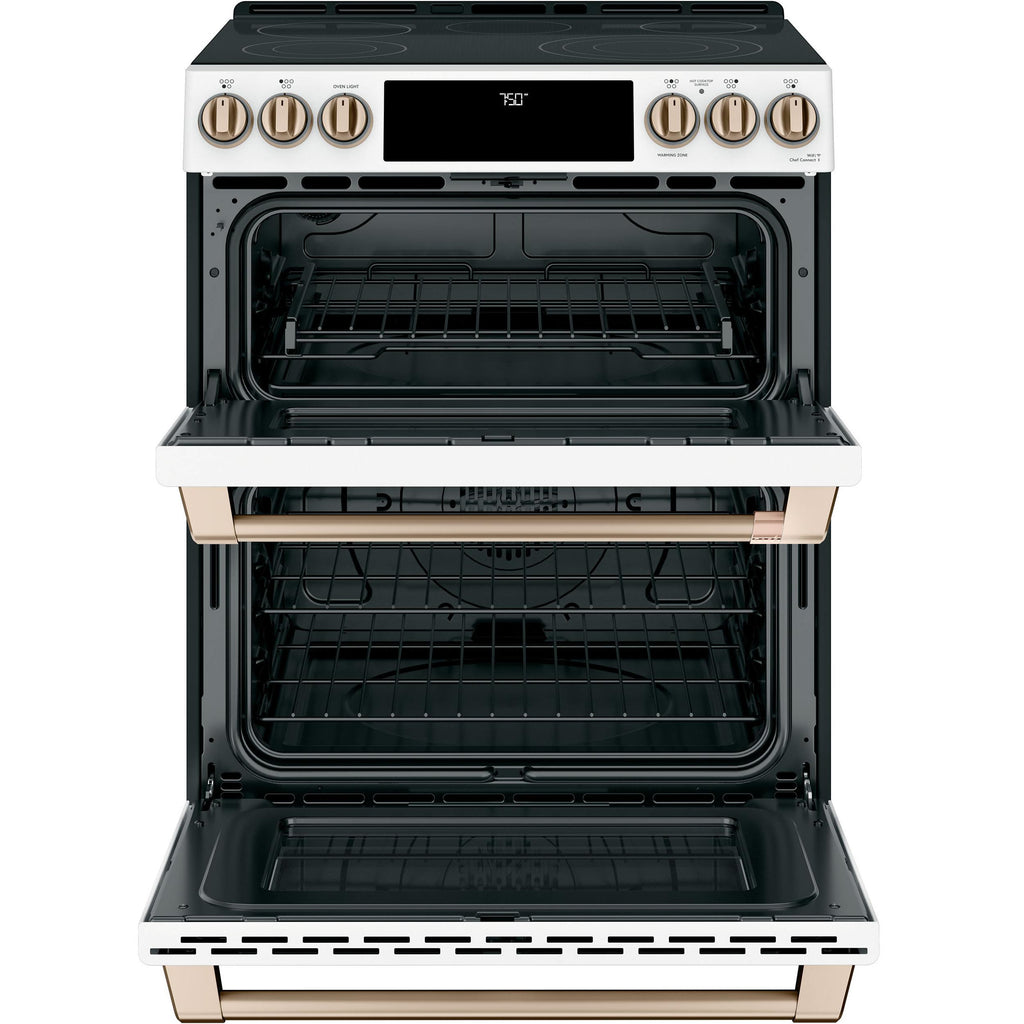

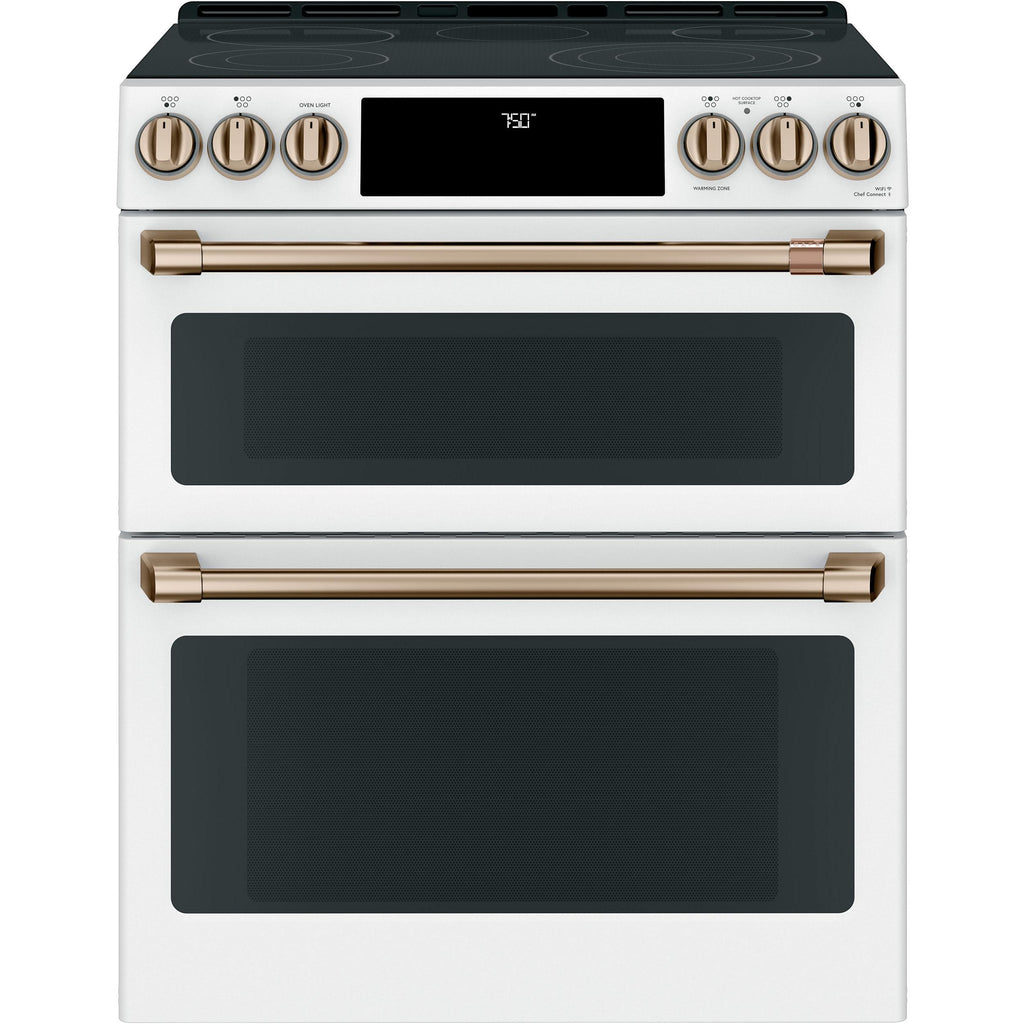

×This Café™ 30-inch, slide-in double oven electric range features Chef Connect, a temperature probe, 5 elements and a convection oven. Control your oven from your Smart phone using WiFi Connect.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Fuel Type
Electric
Installation Type
Slide-in
Color
White
Manufacturer Color
Matte White
Appliance Care
• Self-Clean
• Steam Clean
• 2 Self-Clean Heavy-Duty Oven Racks
• Steam Clean
• 2 Self-Clean Heavy-Duty Oven Racks

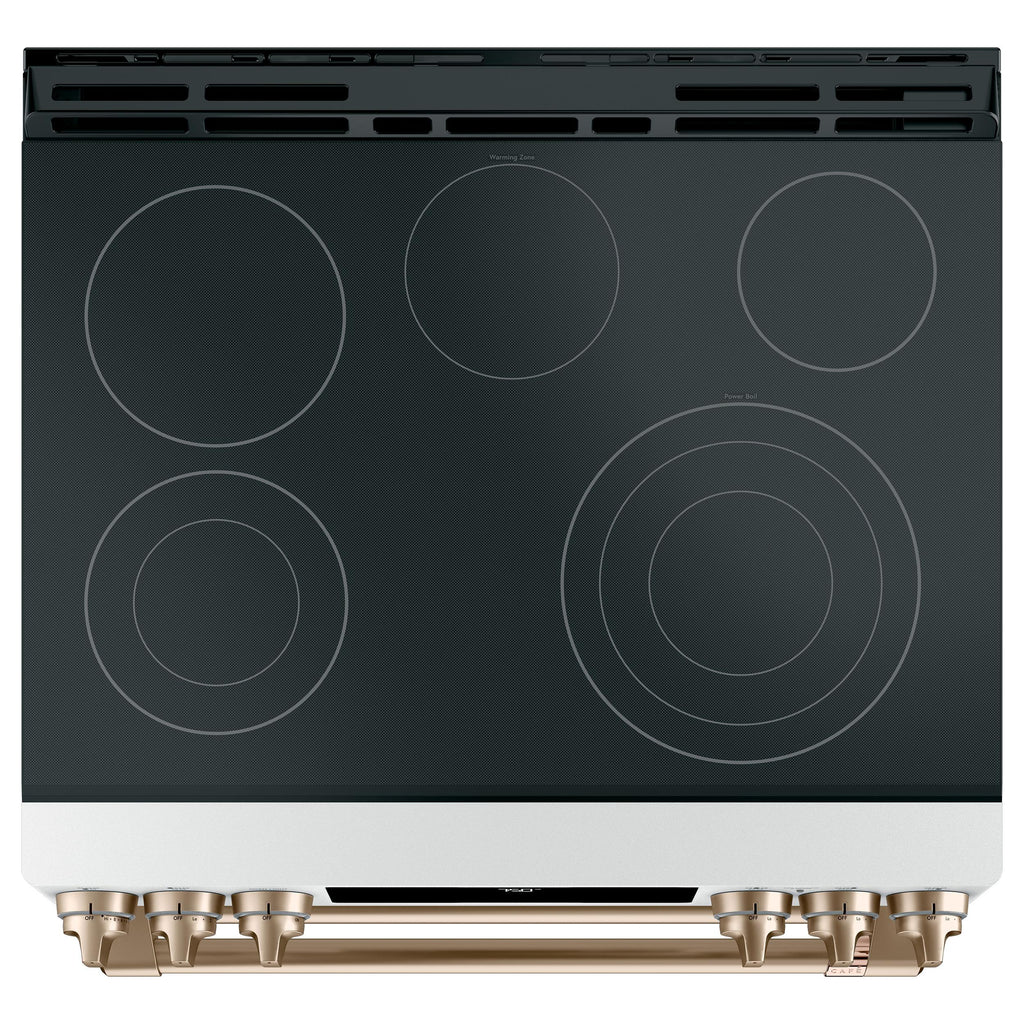

Cooktop
Burners/Elements
5
Burners/Elements Output
• Left Front: 1,900 W
• Left Rear: 2,000 W
• Right Front: 3,600 W Power Boil
• Right Rear: 1,500 W
• Center: 80 W Warming Zone
• Left Rear: 2,000 W
• Right Front: 3,600 W Power Boil
• Right Rear: 1,500 W
• Center: 80 W Warming Zone
Burner/Element Size
• Left Front: 8"/5"
• Left Rear: 8"
• Right Front: 12"/9"/6"
• Right Rear: 6"
• Center: 6"
• Left Rear: 8"
• Right Front: 12"/9"/6"
• Right Rear: 6"
• Center: 6"
Elements
Smoothtop
Oven
Capacity (cu. ft.)
• Total Capacity: 7.0 cu.ft.
• Large Oven: 4.3 cu.ft.
• Small Oven: 2.7 cu.ft.
• Large Oven: 4.3 cu.ft.
• Small Oven: 2.7 cu.ft.
Number of Ovens
Double
Programs
• Convection Bake
• Convection Roast
• Convection Roast
Features
Technologies
• Chef Connect
• Amazon Alexa
• DiGiorno
• Drop
• IFTTT
• Innit
• Nest
• The Google Assistant
• True European Convection with Precise Air
• Amazon Alexa
• DiGiorno
• Drop
• IFTTT
• Innit
• Nest
• The Google Assistant
• True European Convection with Precise Air
Control Lock
Yes
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Wi-Fi
Yes
Additional Information
• Black Ceramic Glass
• Audible Preheat Signal
• Auto Oven Shut-Off with Override
• Auto Recipe Conversion
• C° or F° Programmable
• Delay Bake Option (Time Cook)
• Delay Clean Option
• Electronic Clock & Kitchen Timer
• Fast Preheat
• Hi / Low Broil
• Oven "ON" Light
• Self-Clean Cool Down Time Display
• Temperature Probe
• Warm Mode
• 6-Pass Broil Element (Upper)
• 8-Pass Broil Element (Lower)
• 1 Roller Rack
• 6 Rack Positions
• Infinite Heat Controls
• Bake Wattage: 2650W Upper / 2650W Lower
• Broiler Wattage: 3000W Upper / 3600W Lower
• Convection Wattage: 2500W
• Big View Oven Window
• Audible Preheat Signal
• Auto Oven Shut-Off with Override
• Auto Recipe Conversion
• C° or F° Programmable
• Delay Bake Option (Time Cook)
• Delay Clean Option
• Electronic Clock & Kitchen Timer
• Fast Preheat
• Hi / Low Broil
• Oven "ON" Light
• Self-Clean Cool Down Time Display
• Temperature Probe
• Warm Mode
• 6-Pass Broil Element (Upper)
• 8-Pass Broil Element (Lower)
• 1 Roller Rack
• 6 Rack Positions
• Infinite Heat Controls
• Bake Wattage: 2650W Upper / 2650W Lower
• Broiler Wattage: 3000W Upper / 3600W Lower
• Convection Wattage: 2500W
• Big View Oven Window
Electrical Information
Information
• 208 V / 240 V
• 40 A
• 40 A
Certifications and Approvals
ADA Compliant
Yes
Sabbath/Star-K
Yes
Accessories
Included
CXFCEHKPMBZ Brushed Bronze Kit
Optional
• CXFCEHKPMBT Brushed Black Kit
• CXFCEHKPMCU Brushed Copper Kit
• CXFCEHKPMSS Brushed Stainless Kit
• CXFCEHKPMCG Brushed Brass Kit
• CXFCEHKPMFB Flat Black Kit
• Trim Kit: JXFILLR1BB
• CXFCEHKPMCU Brushed Copper Kit
• CXFCEHKPMSS Brushed Stainless Kit
• CXFCEHKPMCG Brushed Brass Kit
• CXFCEHKPMFB Flat Black Kit
• Trim Kit: JXFILLR1BB
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
37.37 inch(es) / 94.93 cm
Depth (Without Handles)
26.87 inch(es) / 68.26 cm
Depth (Including Handles)
29.5 inch(es) / 74.93 cm
Weight
247.01 lb(s) / 112.04 kg
Additional Dimensions
• Depth with Door Open: 43 7/8"
• Oven Interior Dimensions (W x H x D): 24" x 10-1/8" x 19-1/8" - Upper; 24" x 15" x 20-5/8" - Lower
• Height to Cooking Surface: 36 1/4" +/- 1/4"
• Oven Interior Dimensions (W x H x D): 24" x 10-1/8" x 19-1/8" - Upper; 24" x 15" x 20-5/8" - Lower
• Height to Cooking Surface: 36 1/4" +/- 1/4"
Shipping Dimensions
Width
32.5 inch(es) / 82.55 cm
Height
44.5 inch(es) / 113.03 cm
Depth
31.5 inch(es) / 80.01 cm
Weight
291.01 lb(s) / 132.00 kg
Warranty
Warranty
Limited 1 Year Parts and Labor
