DESCRIPTION

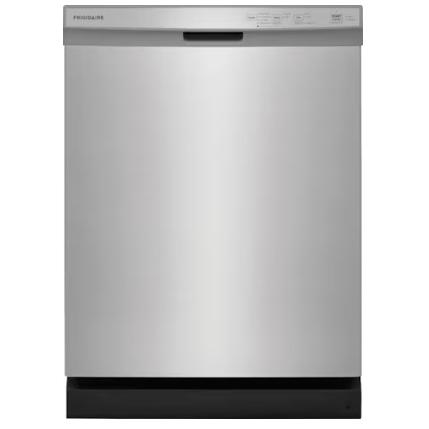

×Frigidaire 24-inch front control dishwasher features automatic temperature control, 4 wash programs, 54 dBA sound level and can accommodate up to 14 place settings.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Type
Built-In
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Place Settings
14
Tub Material
Plastic
Silence Rating
54 dB
Cycle Information
Number of Cycles
4
Wash Cycles
• Energy Saver
• Heavy
• Normal
• Quick
• Heavy
• Normal
• Quick
Options
• Air Dry
• Dry - Heat
• Dry - Max
• Drying System: Static Vent
• Heated Dry
• High Temperature
• Start/Cancel
• Washing Temperature - High
• Washing Temperature - Sanitize
• Dry - Heat
• Dry - Max
• Drying System: Static Vent
• Heated Dry
• High Temperature
• Start/Cancel
• Washing Temperature - High
• Washing Temperature - Sanitize
Features
Technologies
• MaxDry™ option
• DishSense® Sensor Technology
• DishSense® Sensor Technology
Delay Start Information
Delay Start Hours: 4 Hours
Delay Start
Yes
Control Lock
Yes
Additional Information
• Automatic Temperature Control
• Detergent Dispenser
• Filter Material: Plastic
• Filter Trap: Removable
• Filtered Water: 100 %
• Hard Food Disposer or Filtration
• Motor Speeds: Single-Speed
• Rinse Aid Dispenser
• Smart Soil Sensor
• Lower Spray Arm: Bi-Beam
• Middle Spray Arm: Bi-Beam
• Upper Spray Arm: Spray Arm
• Tub Color: Midnight Ink
• Tub Design: Tall Tub
• Wash Levels: 5
• Wash System: Direct Feed
• Water Pressure: 120 psi
• Water Usage: 3.2 Gallons
• Lower Rack: Maximum Height Clearance: 13"
• Lower Rack: Minimum Height Clearance: 11"
• Lower Rack: Number of Silverware Basket: 1
• Lower Rack: Number of Silverware Basket Lids: 2
• Lower Rack Coating: PVC
• Lower Rack Type: Standard
• Upper Rack: Minimum Height Clearance: 8"
• Upper Rack Coating: PVC
• Upper Rack Spacer: Yes
• Upper Rack Type: Standard
• Prop 65 Label

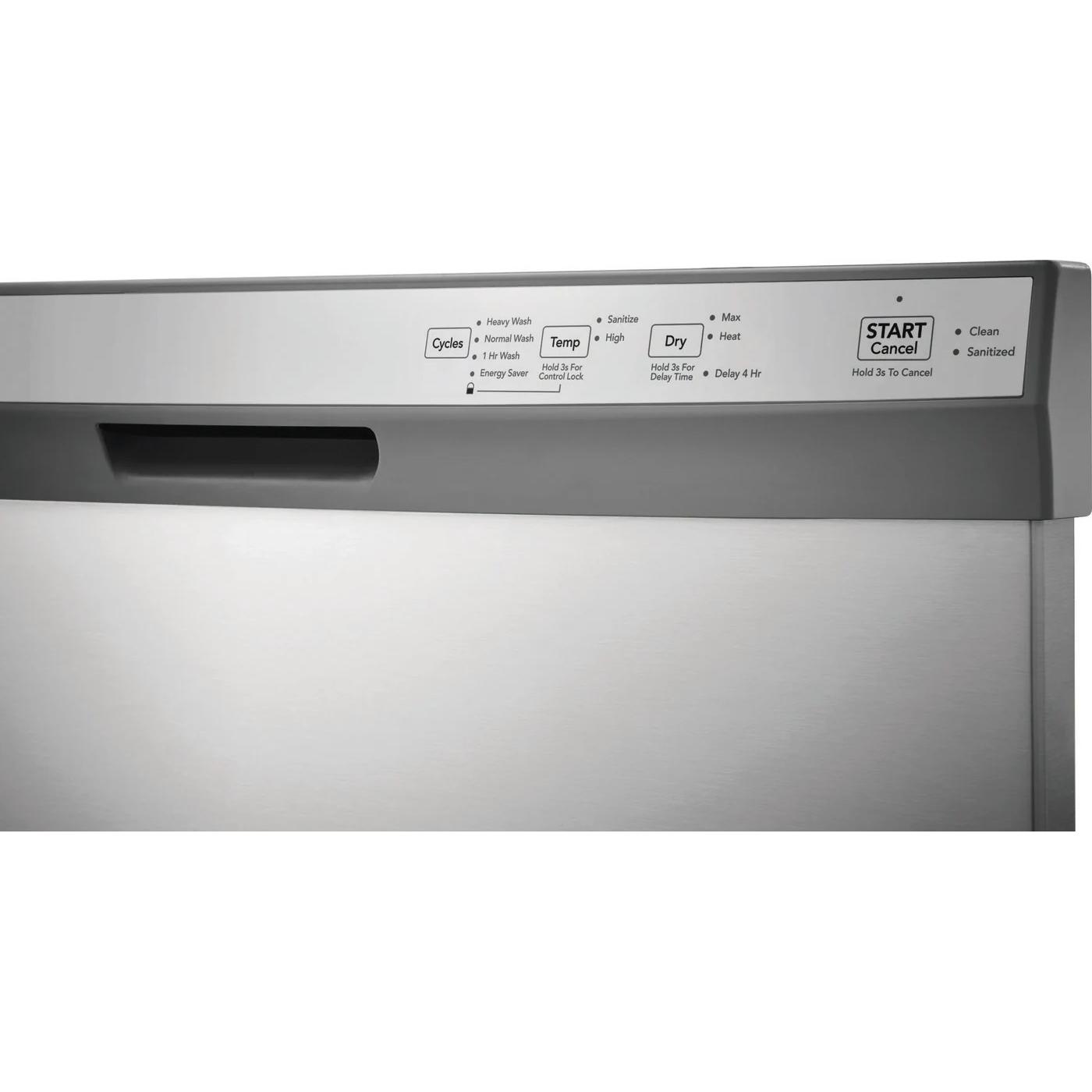

• Control Location: Front
• Rinse Aid Indicator
• Door and Handle Design: Pocket
• Door Latch: Pull
• Door Type: Standard
• Connection Location: Right Bottom
• Number of Leveling Legs: 4
• Water Inlet Location: Left Bottom Front
• Detergent Dispenser
• Filter Material: Plastic
• Filter Trap: Removable
• Filtered Water: 100 %
• Hard Food Disposer or Filtration
• Motor Speeds: Single-Speed
• Rinse Aid Dispenser
• Smart Soil Sensor
• Lower Spray Arm: Bi-Beam
• Middle Spray Arm: Bi-Beam
• Upper Spray Arm: Spray Arm
• Tub Color: Midnight Ink
• Tub Design: Tall Tub
• Wash Levels: 5
• Wash System: Direct Feed
• Water Pressure: 120 psi
• Water Usage: 3.2 Gallons
• Lower Rack: Maximum Height Clearance: 13"
• Lower Rack: Minimum Height Clearance: 11"
• Lower Rack: Number of Silverware Basket: 1
• Lower Rack: Number of Silverware Basket Lids: 2
• Lower Rack Coating: PVC
• Lower Rack Type: Standard
• Upper Rack: Minimum Height Clearance: 8"
• Upper Rack Coating: PVC
• Upper Rack Spacer: Yes
• Upper Rack Type: Standard
• Prop 65 Label
• Control Location: Front
• Rinse Aid Indicator
• Door and Handle Design: Pocket
• Door Latch: Pull
• Door Type: Standard
• Connection Location: Right Bottom
• Number of Leveling Legs: 4
• Water Inlet Location: Left Bottom Front
Electrical Information
Information
• Annual Energy: 240 kWh
• Amps @ 120 Volts: 10 Amps
• Connected Load @ 120V: 1.2 kW
• Voltage Rating: 120 V
• Amps @ 120 Volts: 10 Amps
• Connected Load @ 120V: 1.2 kW
• Voltage Rating: 120 V
Certifications and Approvals
Energy Star Certified
Yes
NSF® Certified
Yes
UL Listed
Yes
Information
• CEE Tier: Tier 1
• cUL Listed
• Meets ASSE 1006 Requirements
• cUL Listed
• Meets ASSE 1006 Requirements
Dimensions
Class Width
24"
Width
24 inch(es) / 60.96 cm
Height (Min.)
33.5 inch(es) / 85.09 cm
Depth (Without Handle)
25 inch(es) / 63.5 cm
Weight
56 lb(s) / 25.4 kg
Additional Dimensions
• Depth With Door Open: 49 1/4"
• Minimum Height: 33 1/2"
• Minimum Height: 33 1/2"
Warranty
Warranty
• Warranty - Labor: 1 Year
• Warranty - Parts: 1 Year
• Warranty - Parts: 1 Year
UPC
UPC#
12505116162
