DESCRIPTION

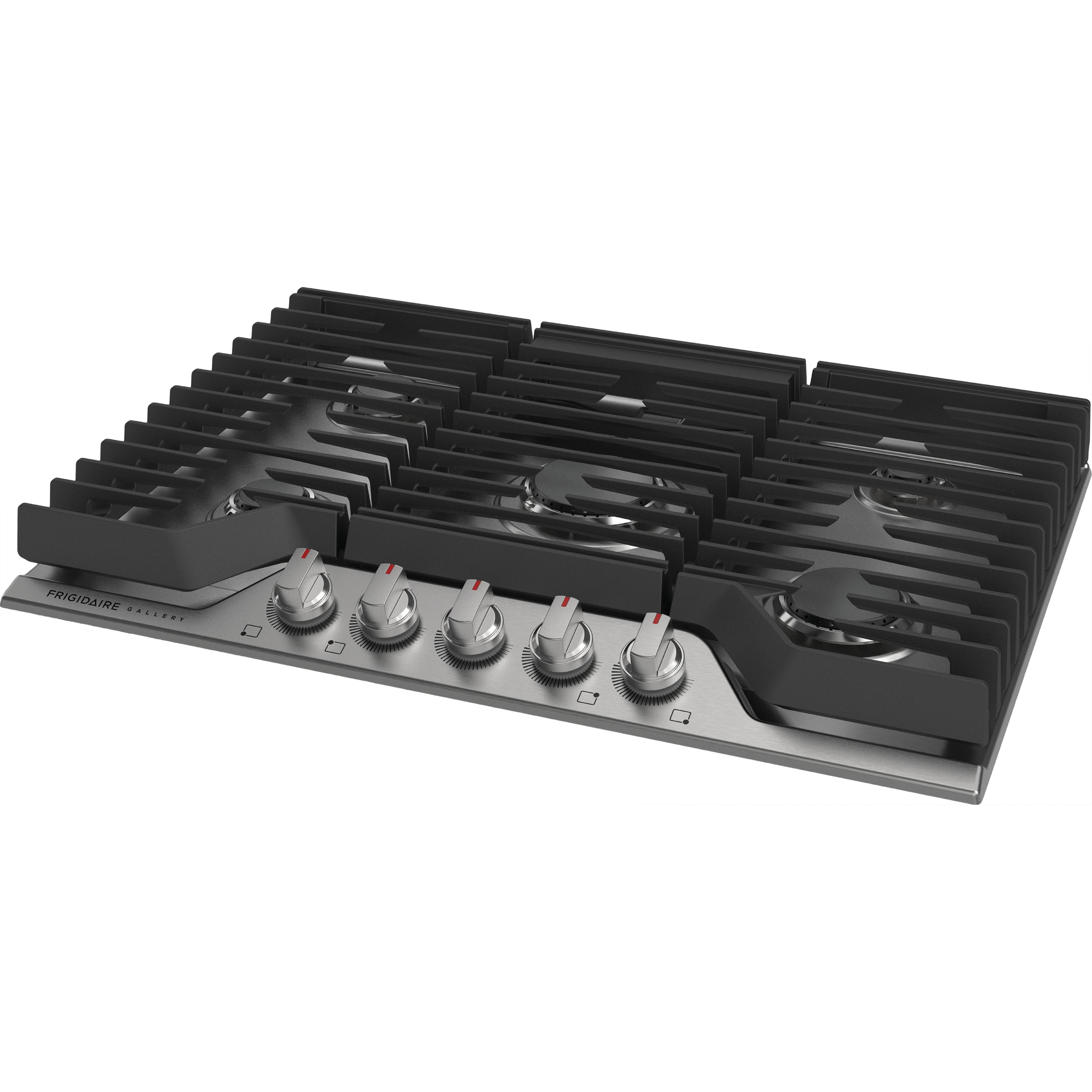

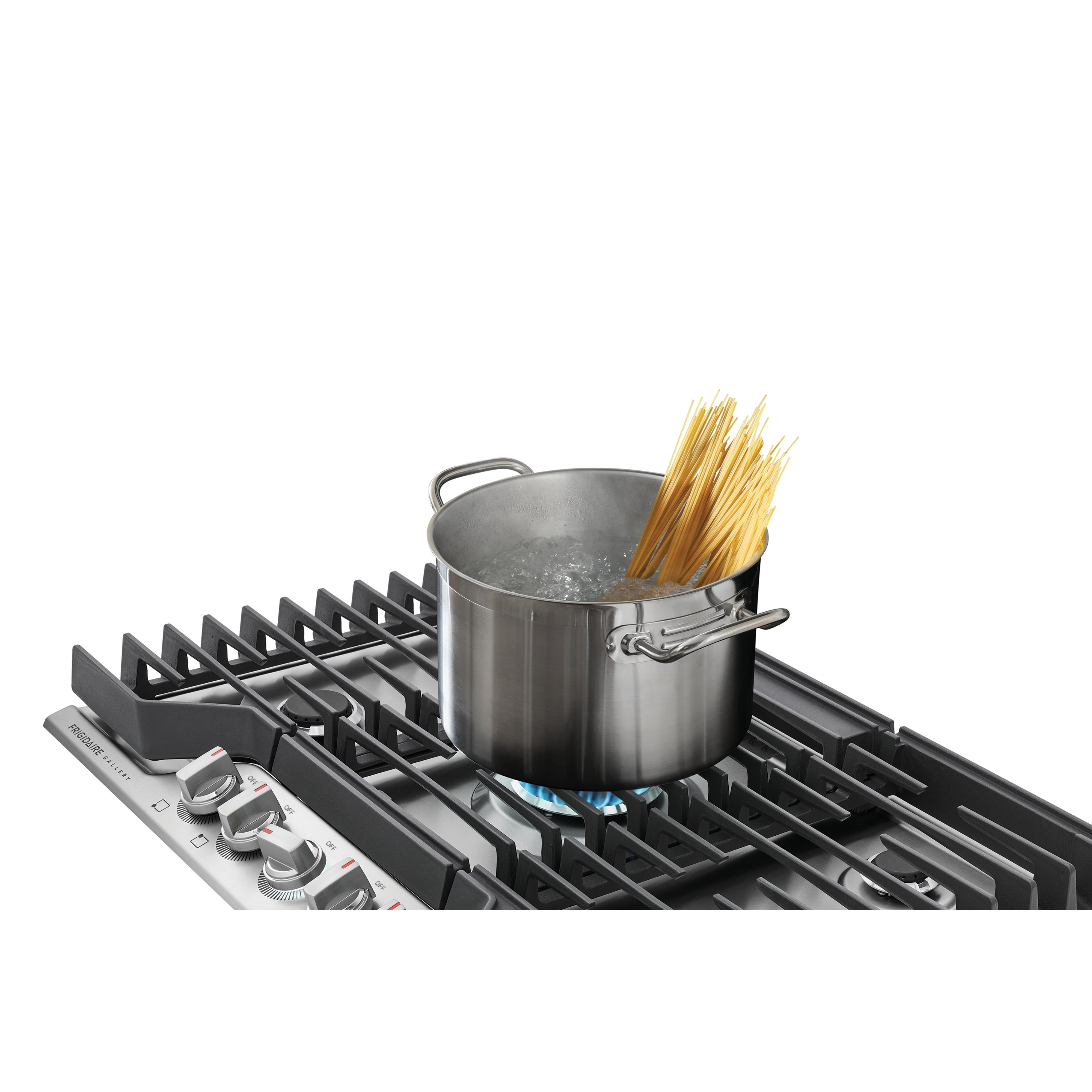

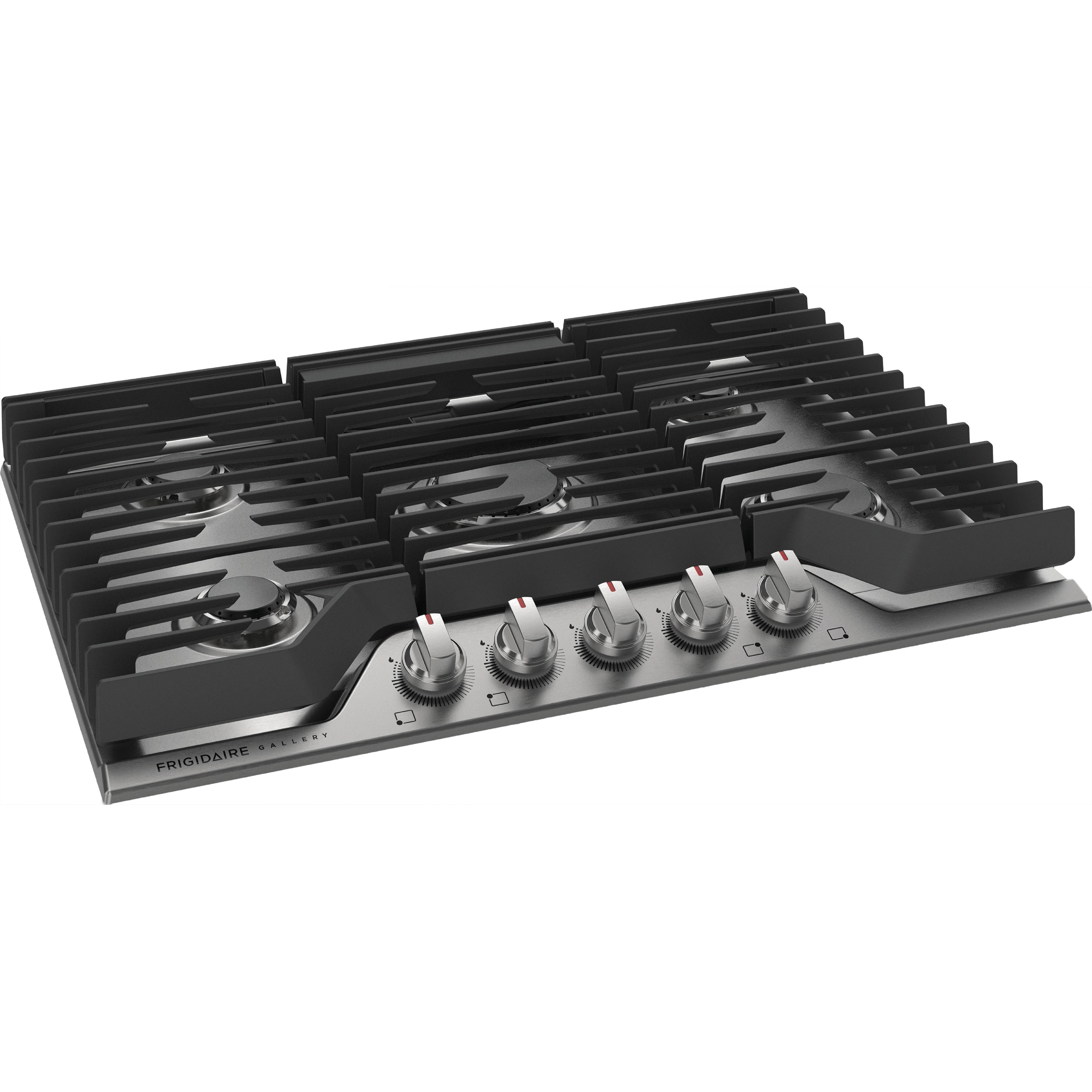

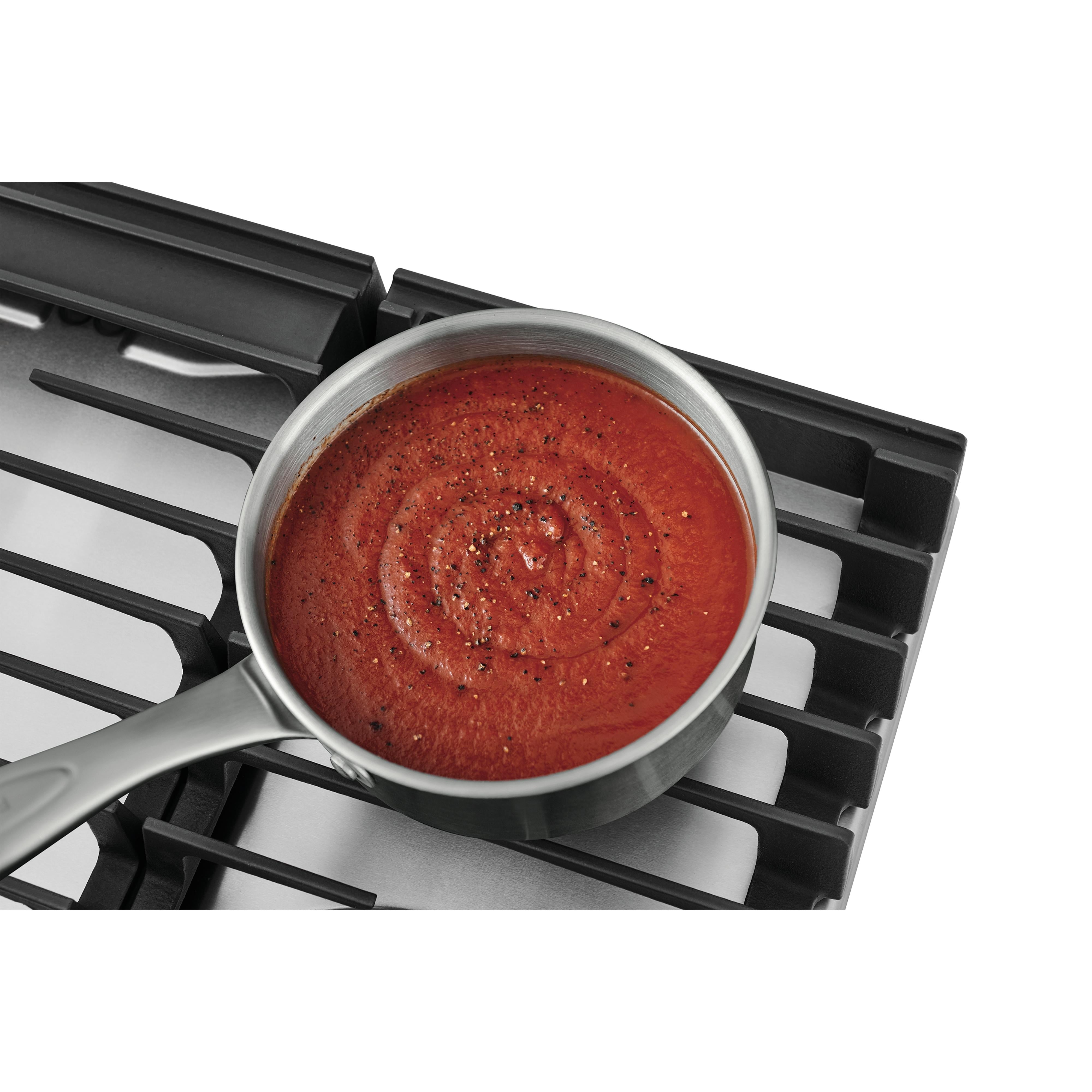

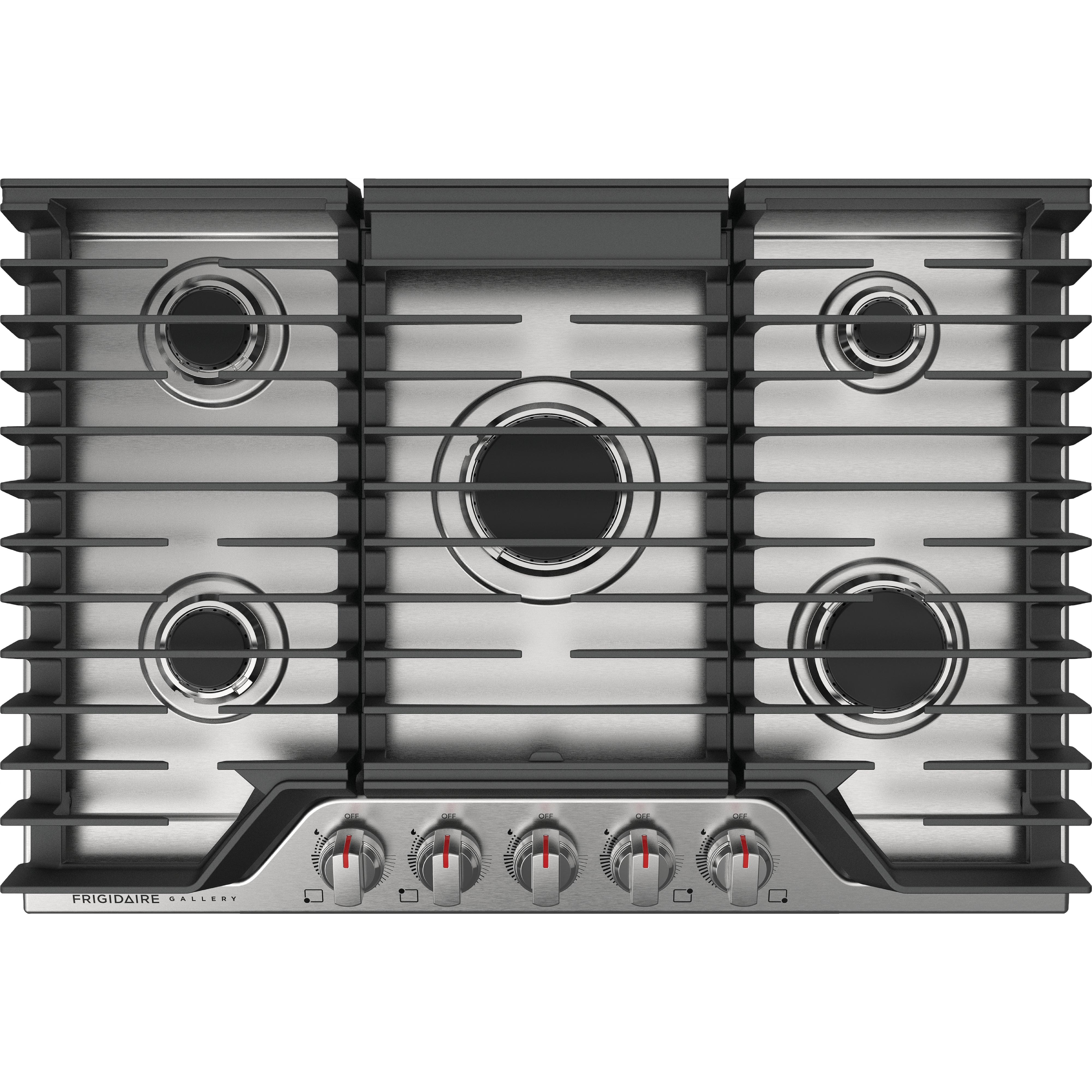

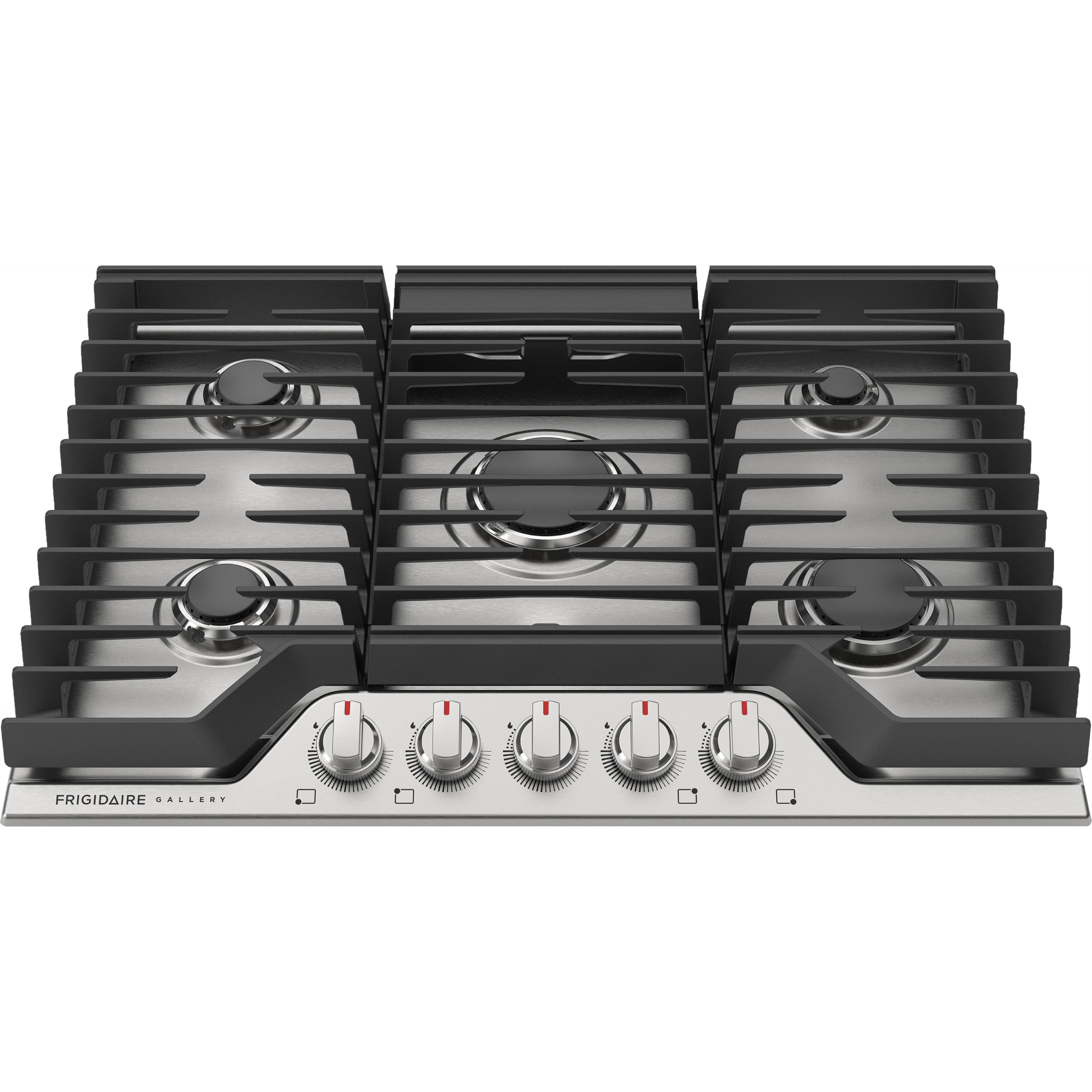

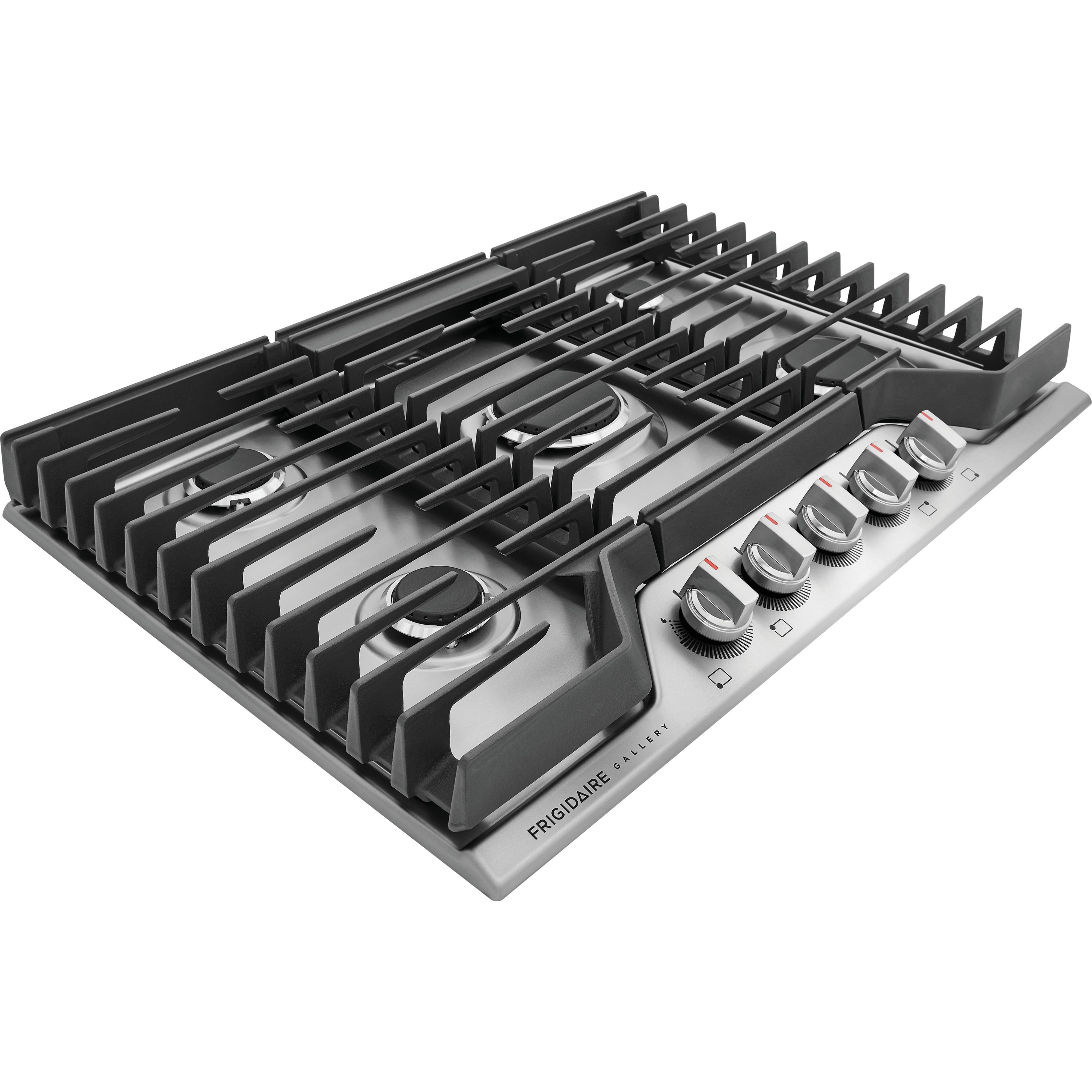

×Frigidaire Gallery 30'' Gas Cooktop with 5 Burners. This cooktop features five burners designed to fit all of your cooking needs, including a 5,000 BTU simmer burner perfect for delicate foods and the powerful 18,000 BTU Quick Boil Burner that gets meals on the table, faster. Backlit LED knobs light up when the cooktop is in use.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Fuel Type
Natural Gas
Type
Built-In
Cooktop
Burners/Elements
5
Power Output
• Right Front Element Burner: 12,000 BTU
• Right Rear Element Burner: 5,000 BTU
• Left Front Element Burner: 9,500 BTU
• Left Rear Element Burner: 7,500 BTU
• Center Front Element Burner: 18,000 BTU
• Right Rear Element Burner: 5,000 BTU
• Left Front Element Burner: 9,500 BTU
• Left Rear Element Burner: 7,500 BTU
• Center Front Element Burner: 18,000 BTU
Surface Features
• Gas supply connection location: Top right
• Power supply connection location: Top right
• Grate material: Cast iron
• Grate quantity: 3
• Grate style: Continuous
• Power supply connection location: Top right
• Grate material: Cast iron
• Grate quantity: 3
• Grate style: Continuous
Features
Additional Information

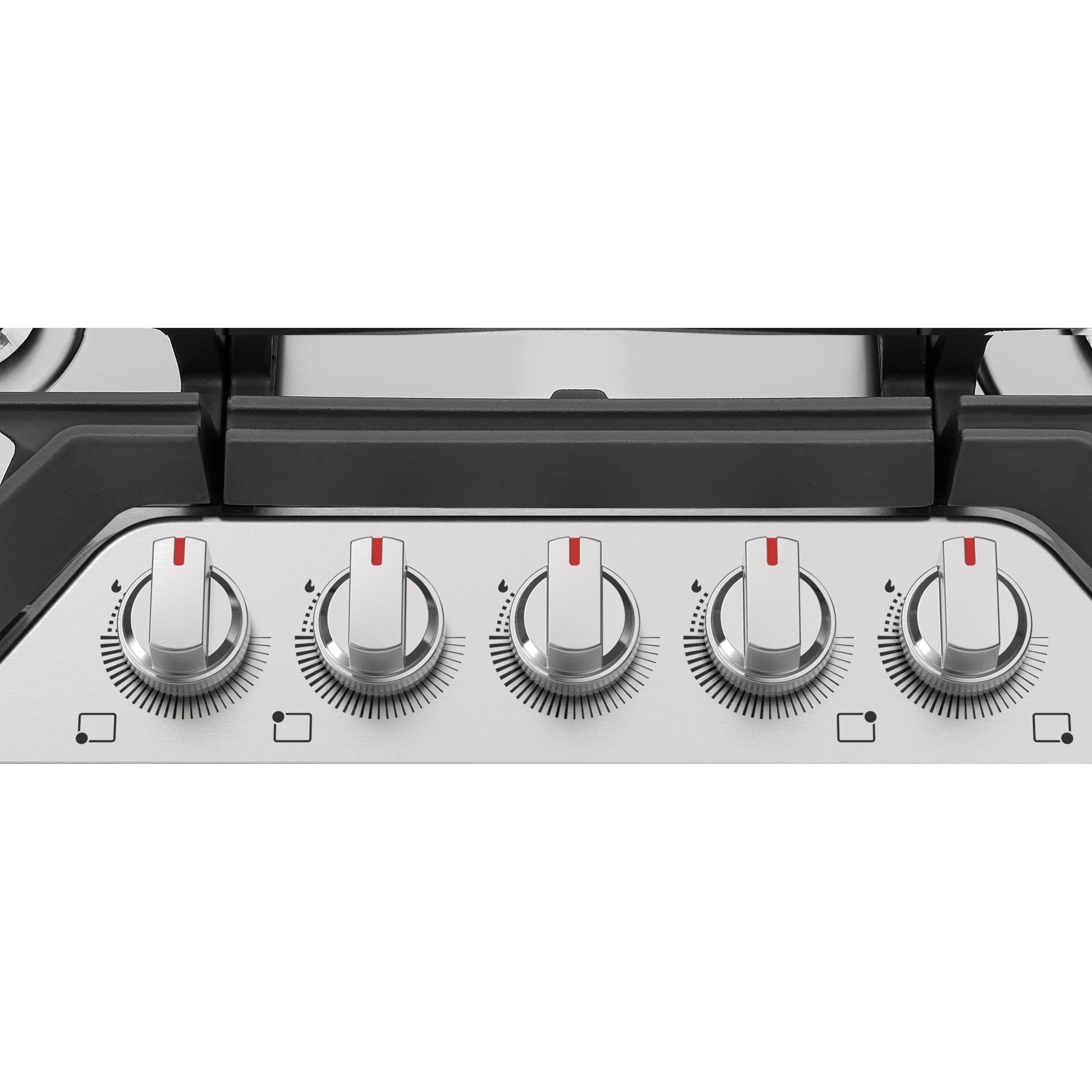

• Control location: Front

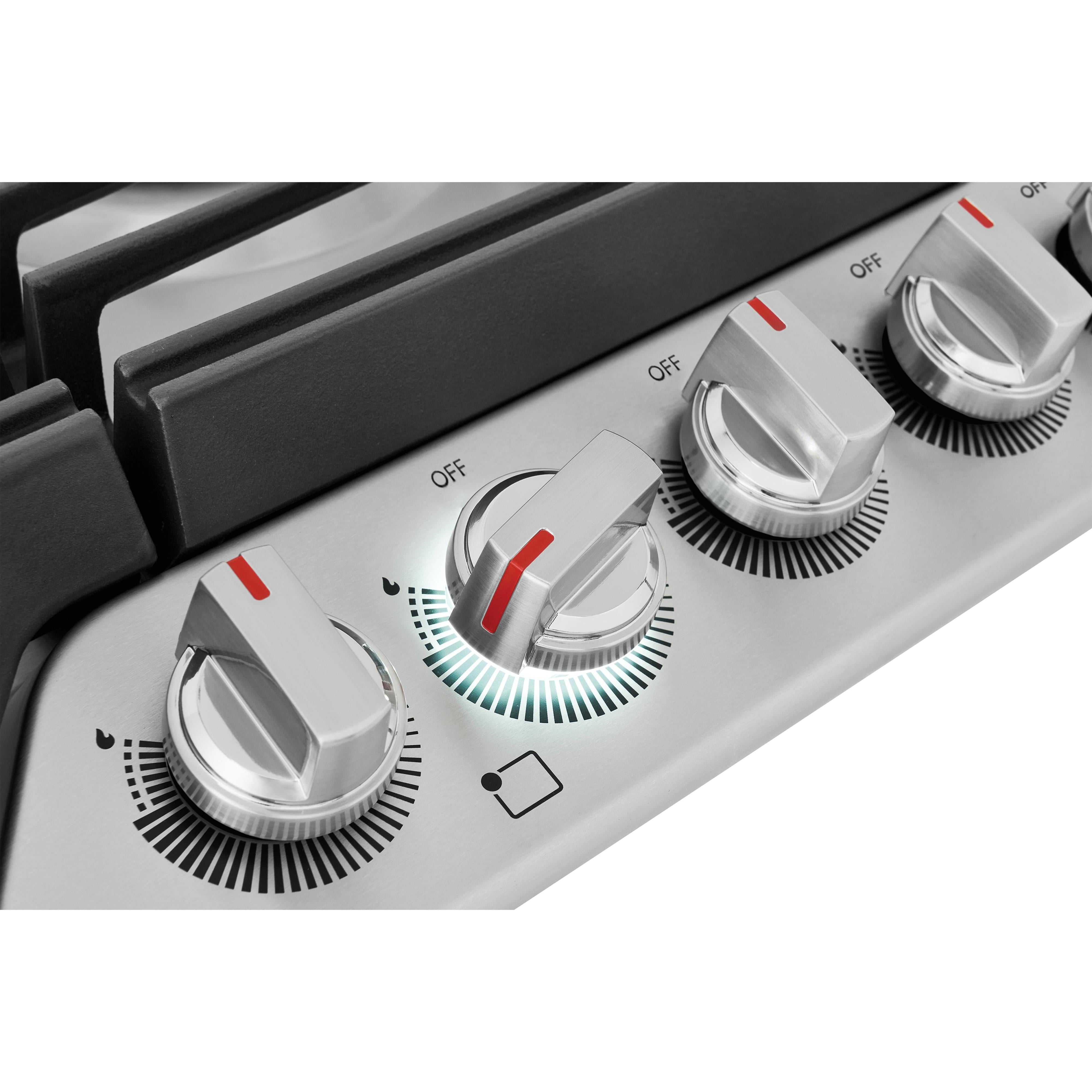

• Backlit knobs
• Backlit knobs
Electrical Information
Information
• Minimum circuit required: 5 Amps
• Voltage rating 120 V
• Voltage rating 120 V
Certifications and Approvals
ADA Compliant
Yes
Information
• CSA Listed
• UL Listed
• UL Listed
Accessories
Included
• Power cord included
• Lp conversion kit included
• Lp conversion kit included
Dimensions
Class Width
30"
Width
30 inch(es) / 76.2 cm
Height
2.44 inch(es) / 6.2 cm
Depth
21 inch(es) / 53.34 cm
Additional Dimensions
• Cutout Height: 7 1/2"
• Maximum Cutout Width: 29 5/16"
• Minimum Cutout Width: 27 1/4"
• Maximum Cutout Depth: 20"
• Minimum Cutout Depth: 19"
• Maximum Cutout Width: 29 5/16"
• Minimum Cutout Width: 27 1/4"
• Maximum Cutout Depth: 20"
• Minimum Cutout Depth: 19"
Warranty
Warranty
1-year limited warranty
UPC
UPC#
12505565786
