DESCRIPTION

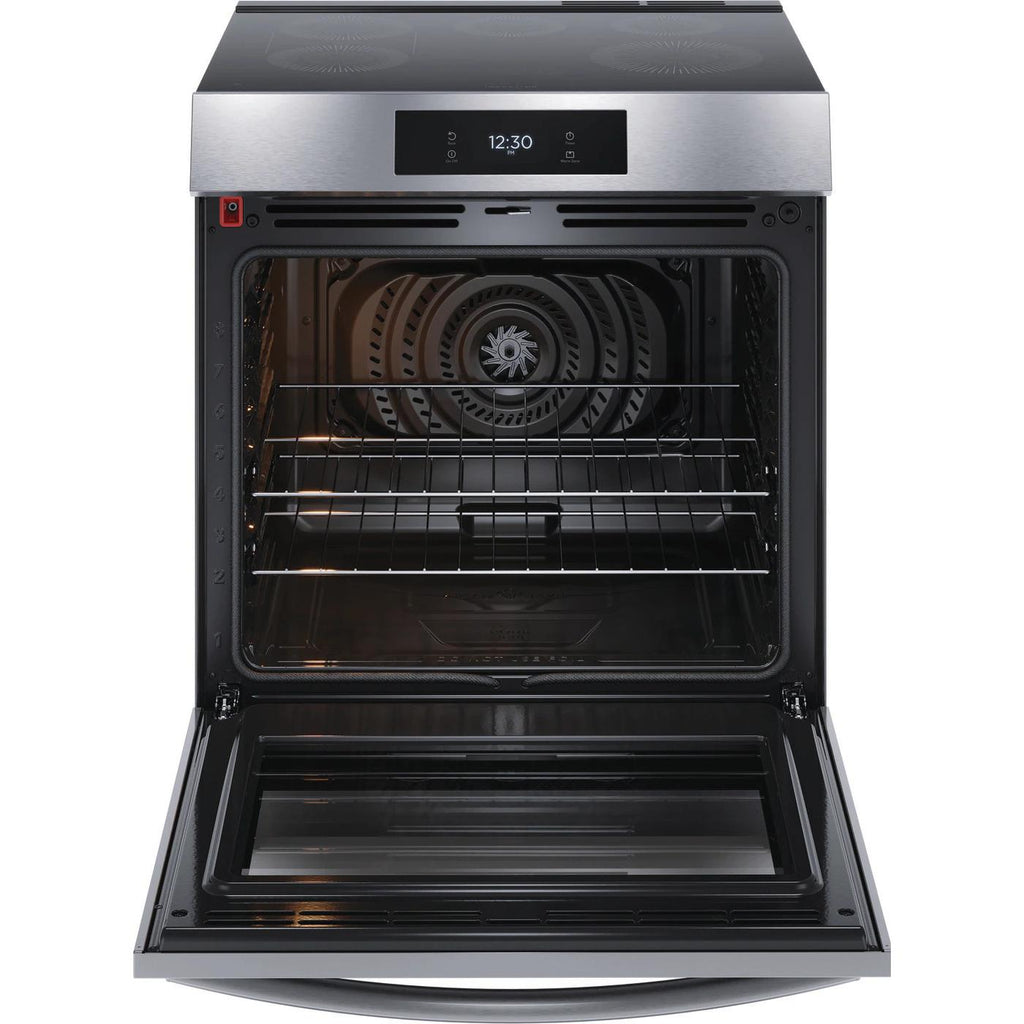

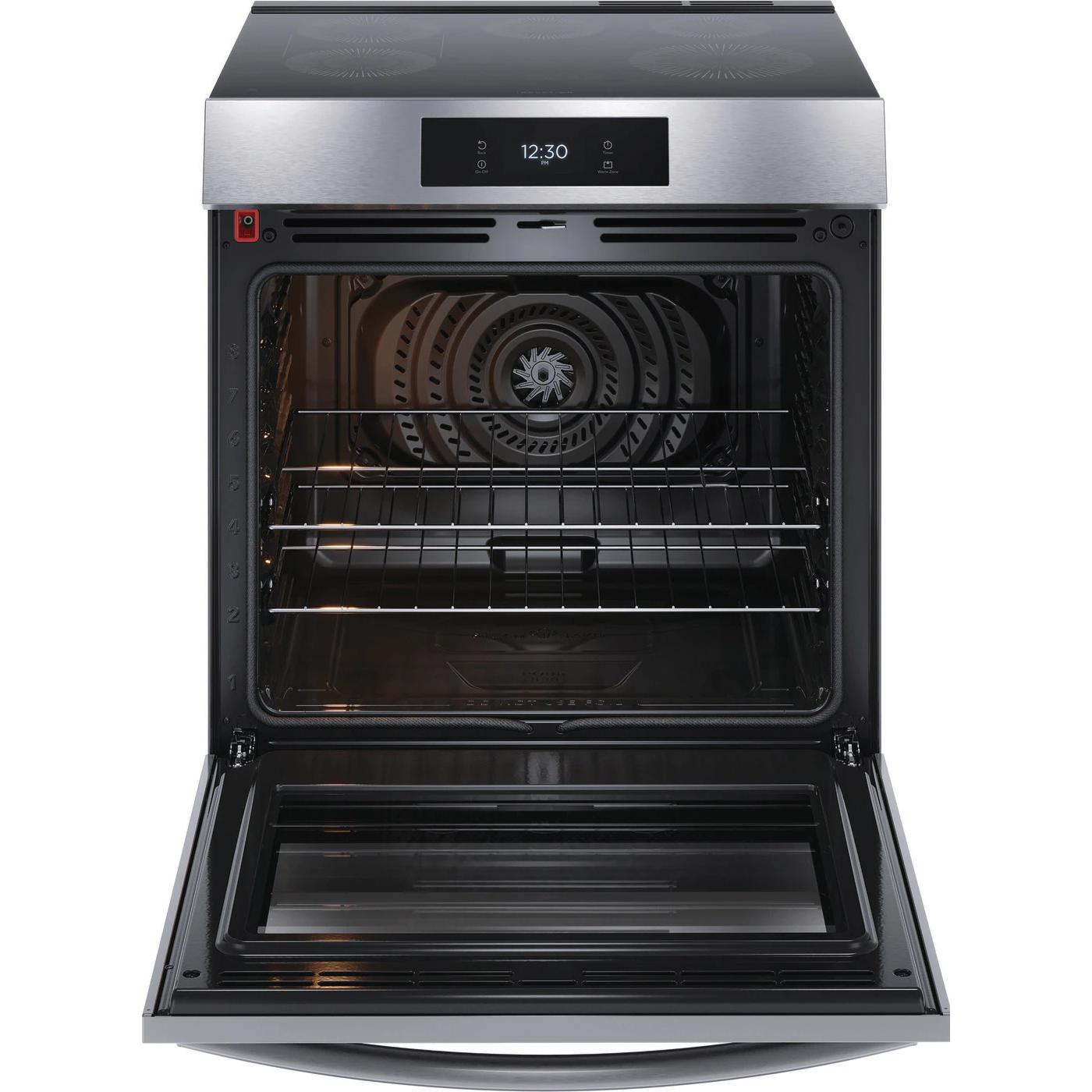

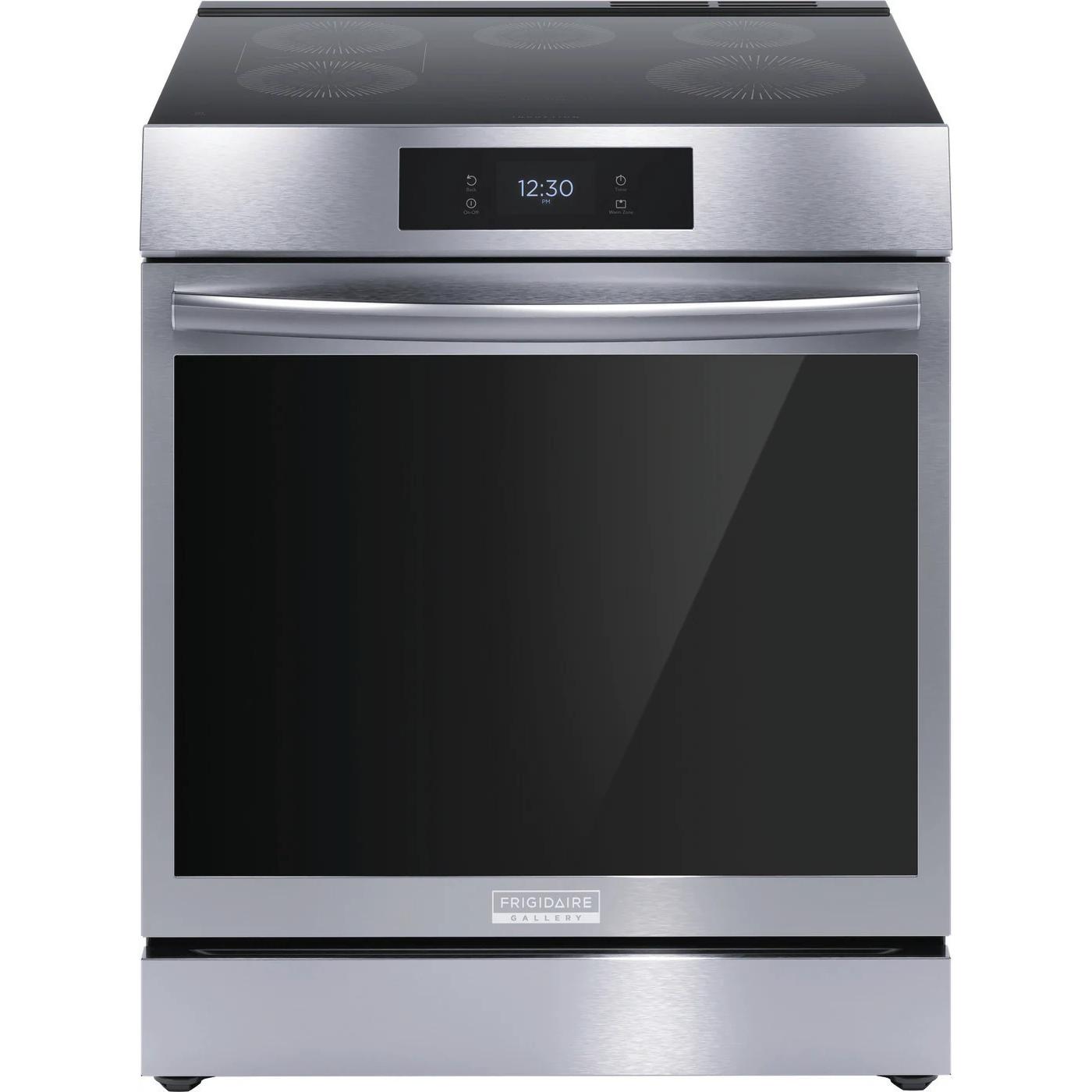

×Frigidaire Gallery 30'' Front Control Induction Range with Total Convection and a 6.2 cu. ft. Capacity. Total Convection gives you maximum versatility in the kitchen, powering cooking modes like Air Fry, No Preheat, Slow Cook, Convection Bake, Steam Bake, Convection Roast, Steam Roast, Air Sous Vide, Bread Proof, Dehydrate and more! Unlike traditional electric and gas cooktops, induction only heats the pan and the food in it, so the area around the pan stays cooler, allowing you to clean up spills and splatters while you cook.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Fuel Type
Electric - Induction
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
• Delay Clean
• Self Clean
• Steam Clean
• Self Clean
• Steam Clean

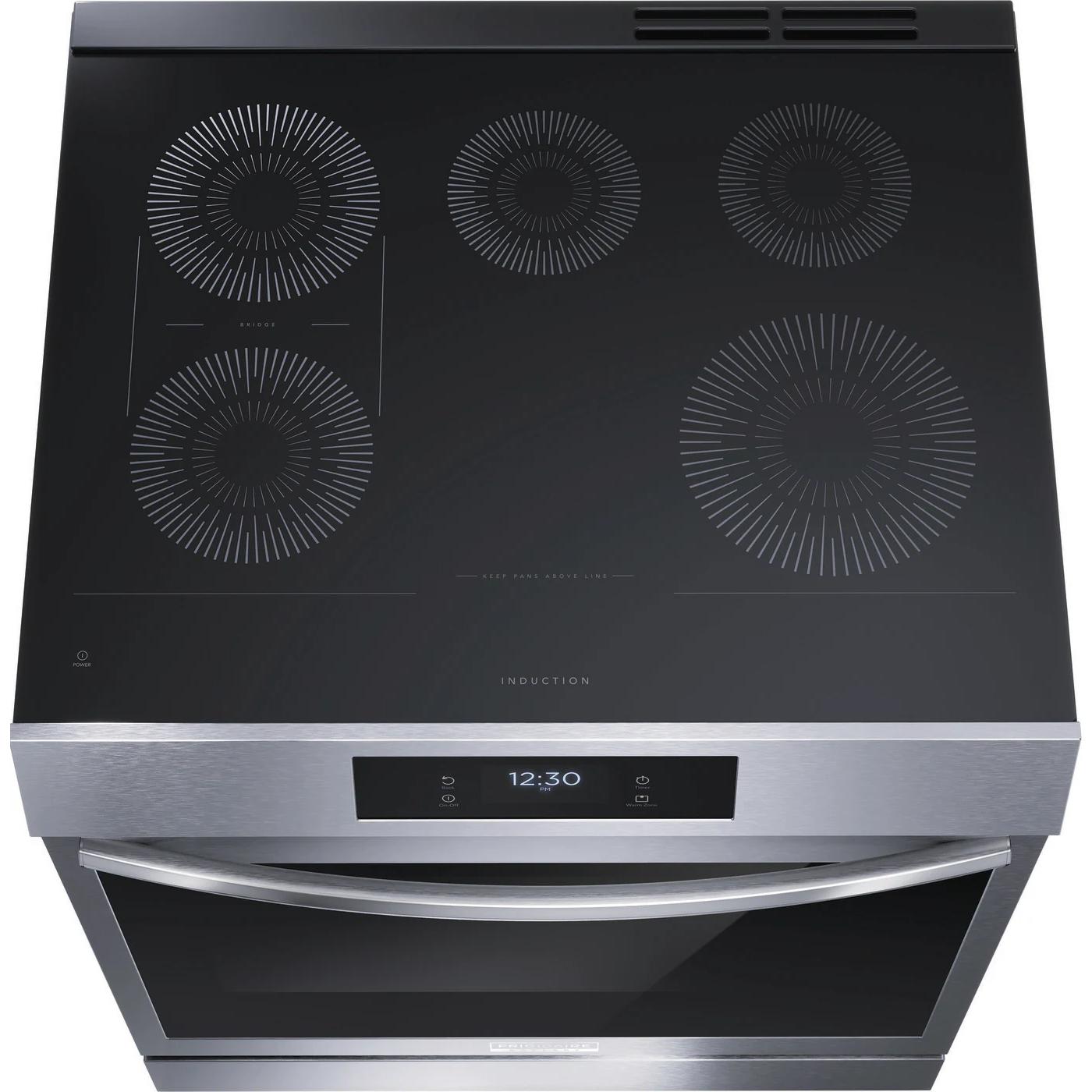

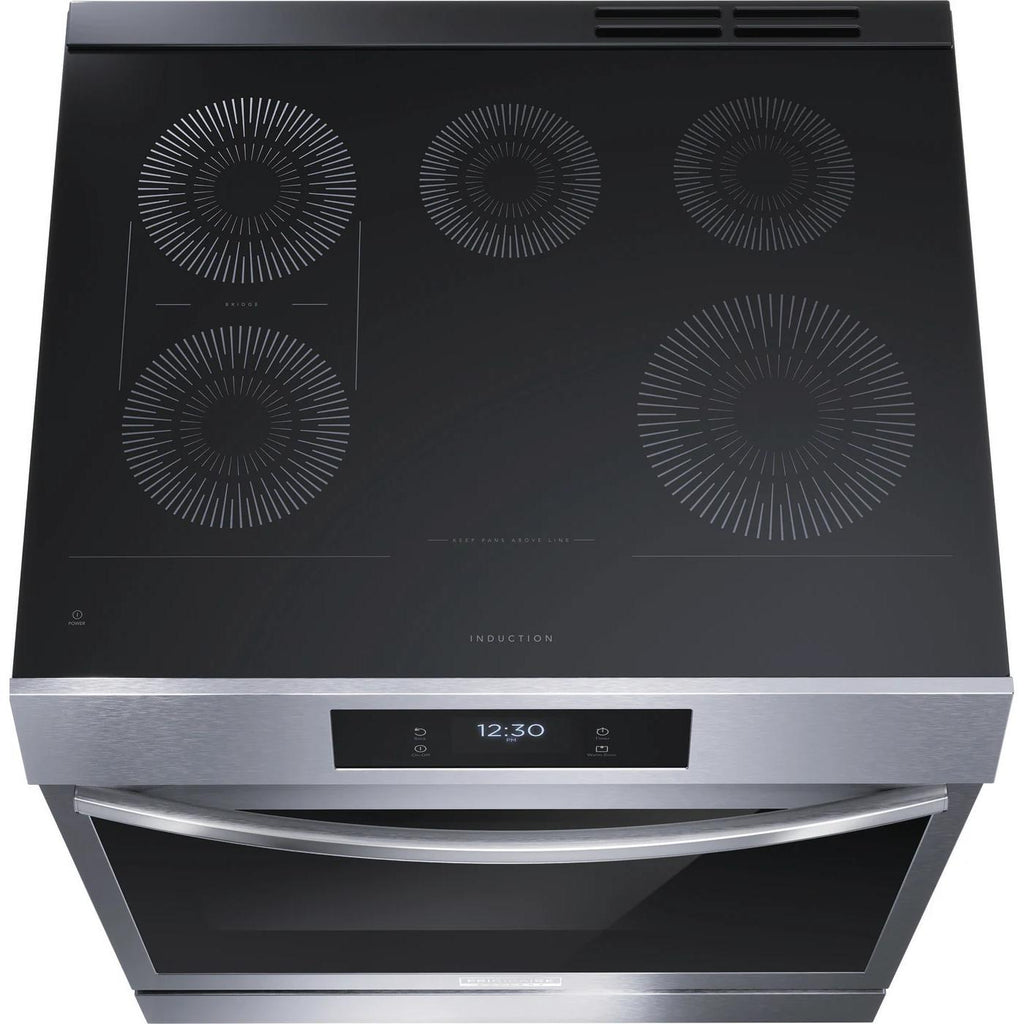

Cooktop
Burners/Elements
5
Burners/Elements Output
• Right Front Element Burner: 2,300 / 3,600 Watts (Boost)
• Right Rear Element Burner: 1,400 / 2,500 Watts (Boost)
• Left Front Element Burner: 1,800 / 2,800 Watts (Boost)
• Left Rear Element Burner: 1,800 / 2,800 Watts (Boost)
• Center Element Burner: 1,400 / 2,500 Watts (Boost)
• Right Rear Element Burner: 1,400 / 2,500 Watts (Boost)
• Left Front Element Burner: 1,800 / 2,800 Watts (Boost)
• Left Rear Element Burner: 1,800 / 2,800 Watts (Boost)
• Center Element Burner: 1,400 / 2,500 Watts (Boost)
Burner/Element Size
• Right Front Element Burner Size: 8 3/10"
• Right Rear Element Burner Size: 5 1/2"
• Left Front Element Burner Size: 7"
• Left Rear Element Burner Size: 7"
• Center Rear Element Burner Size: 5 1/2"
• Right Rear Element Burner Size: 5 1/2"
• Left Front Element Burner Size: 7"
• Left Rear Element Burner Size: 7"
• Center Rear Element Burner Size: 5 1/2"
Elements
Induction
Oven
Capacity (cu. ft.)
6.2
Number of Ovens
Single
Programs
• Air Fry
• Air Sous Vide
• Bake
• Bread Proof
• Broil
• Convection Bake
• Convection Roast
• Dehydrate
• Slow Cook
• Keep Warm
• Perfect Turkey
• Preheat
• Steam Bake
• Steam Roast
• Air Sous Vide
• Bake
• Bread Proof
• Broil
• Convection Bake
• Convection Roast
• Dehydrate
• Slow Cook
• Keep Warm
• Perfect Turkey
• Preheat
• Steam Bake
• Steam Roast
Features
Air Fry
Yes
Control Lock
Yes
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Clock
• Kitchen Timer
• Cooktop Lockout
• Delay Start
• Door Lock
• Lockout
• No Preheat
• Probe
• Set Clock
• Temperature Display
• User Preferences
• Delayed Bake
• Program Fahrenheit or Celsius
• Silent Control Panel
• Auto Pan Detect
• Cooking Surface Type: Smooth
• Element On Indicator Light
• Hot-Surface Indicator Light
• Cooktop Control Location: Top
• Display Light Color: White
• Cooktop Light Color: Red
• Display Type: Capacitive Touch
• Bake Element: 2500 Watts (8 pass)
• Broil Element: 4000 Watts (6 pass)
• Convection Element: 3800 Watts
• Number of Rack Positions: 8
• Oven Interior Color: Midnight Black
• Oven Light: 2 x Halogen (40 Watts)
• Adjustable Leveling Legs
• Kitchen Timer
• Cooktop Lockout
• Delay Start
• Door Lock
• Lockout
• No Preheat
• Probe
• Set Clock
• Temperature Display
• User Preferences
• Delayed Bake
• Program Fahrenheit or Celsius
• Silent Control Panel
• Auto Pan Detect
• Cooking Surface Type: Smooth
• Element On Indicator Light
• Hot-Surface Indicator Light
• Cooktop Control Location: Top
• Display Light Color: White
• Cooktop Light Color: Red
• Display Type: Capacitive Touch
• Bake Element: 2500 Watts (8 pass)
• Broil Element: 4000 Watts (6 pass)
• Convection Element: 3800 Watts
• Number of Rack Positions: 8
• Oven Interior Color: Midnight Black
• Oven Light: 2 x Halogen (40 Watts)
• Adjustable Leveling Legs
Drawer Features
Storage
Yes
Electrical Information
Information
• Connected Load @ 240V: 15 kW
• Minimum Circuit Required: 40 Amps
• Voltage Rating: 240 V
• Minimum Circuit Required: 40 Amps
• Voltage Rating: 240 V
Certifications and Approvals
Information
• UL Listed
• RoHS
• RoHS
Accessories
Included
Power Cord
Dimensions
Class Width
30"
Width
30 inch(es) / 76.2 cm
Height
35.37 inch(es) / 89.84 cm
Depth (Without Handles)
26 inch(es) / 66.04 cm
Additional Dimensions
• Depth With Door 90° Open 47 5/16"
• Depth With Handle 28 1/2"
• Oven Interior Height 21 1/4"
• Oven Interior Width 25 3/16"
• Oven Interior Depth 19 7/8"
• Depth With Handle 28 1/2"
• Oven Interior Height 21 1/4"
• Oven Interior Width 25 3/16"
• Oven Interior Depth 19 7/8"
Warranty
Warranty
1-Year Parts and Labor
UPC
UPC#
12505515118
