DESCRIPTION

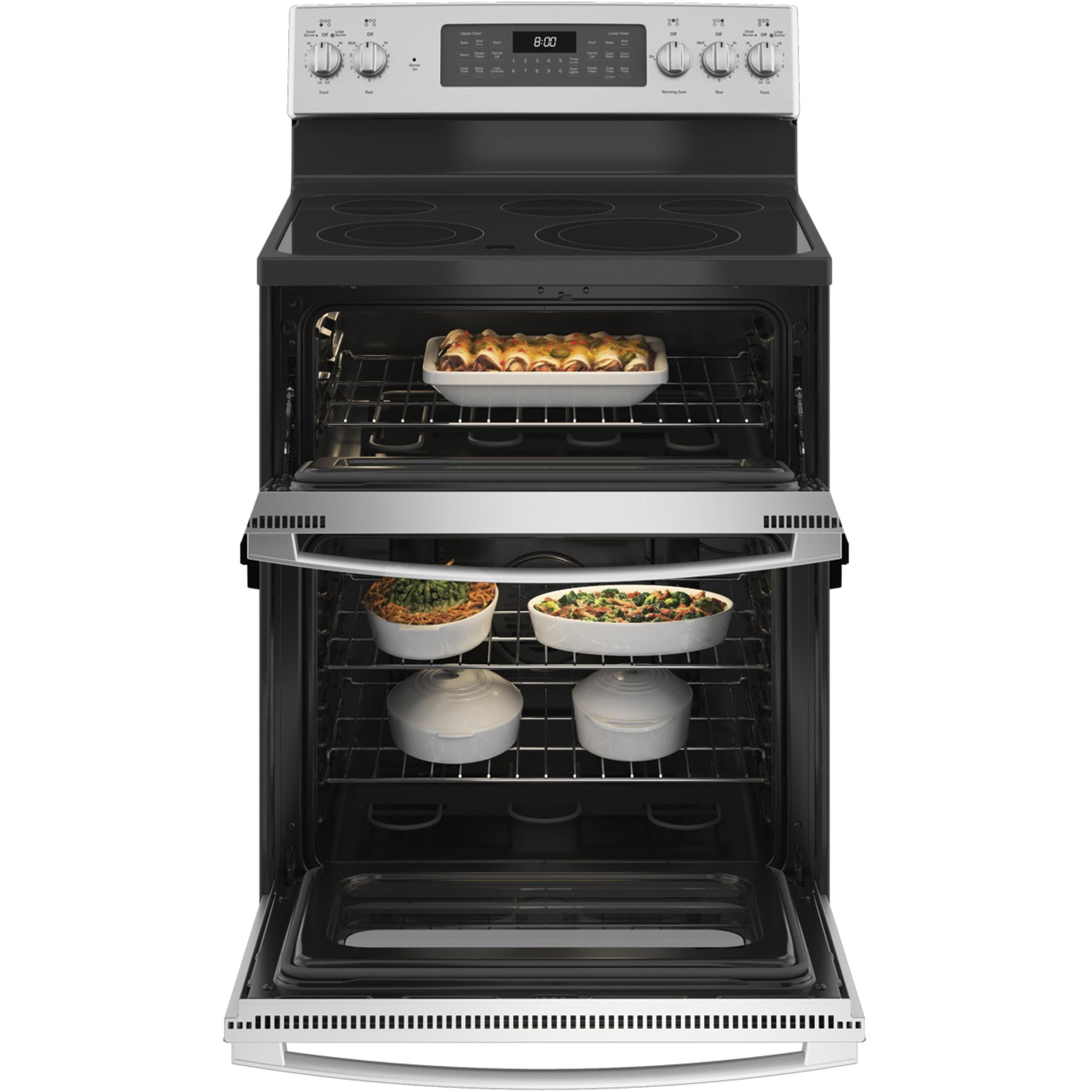

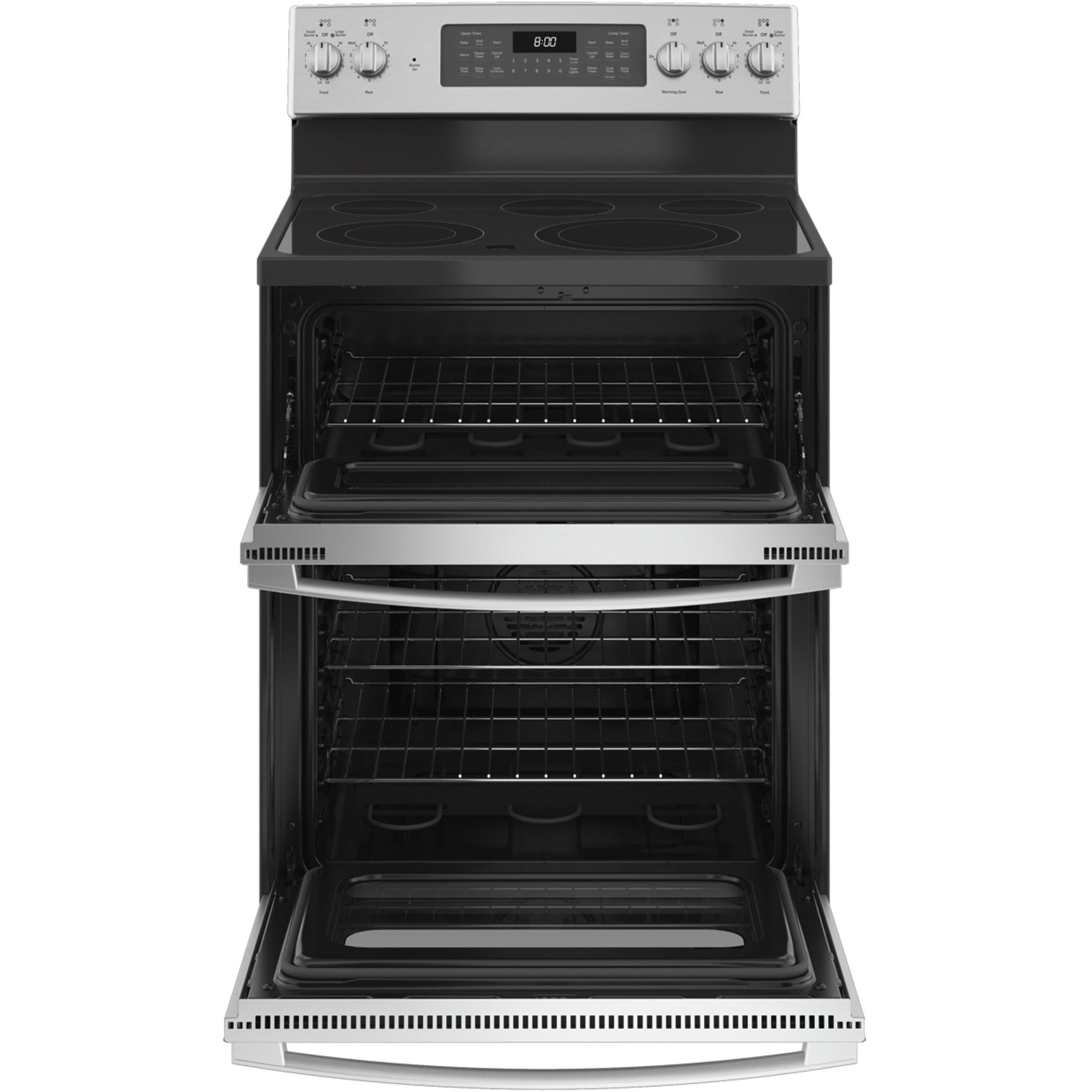

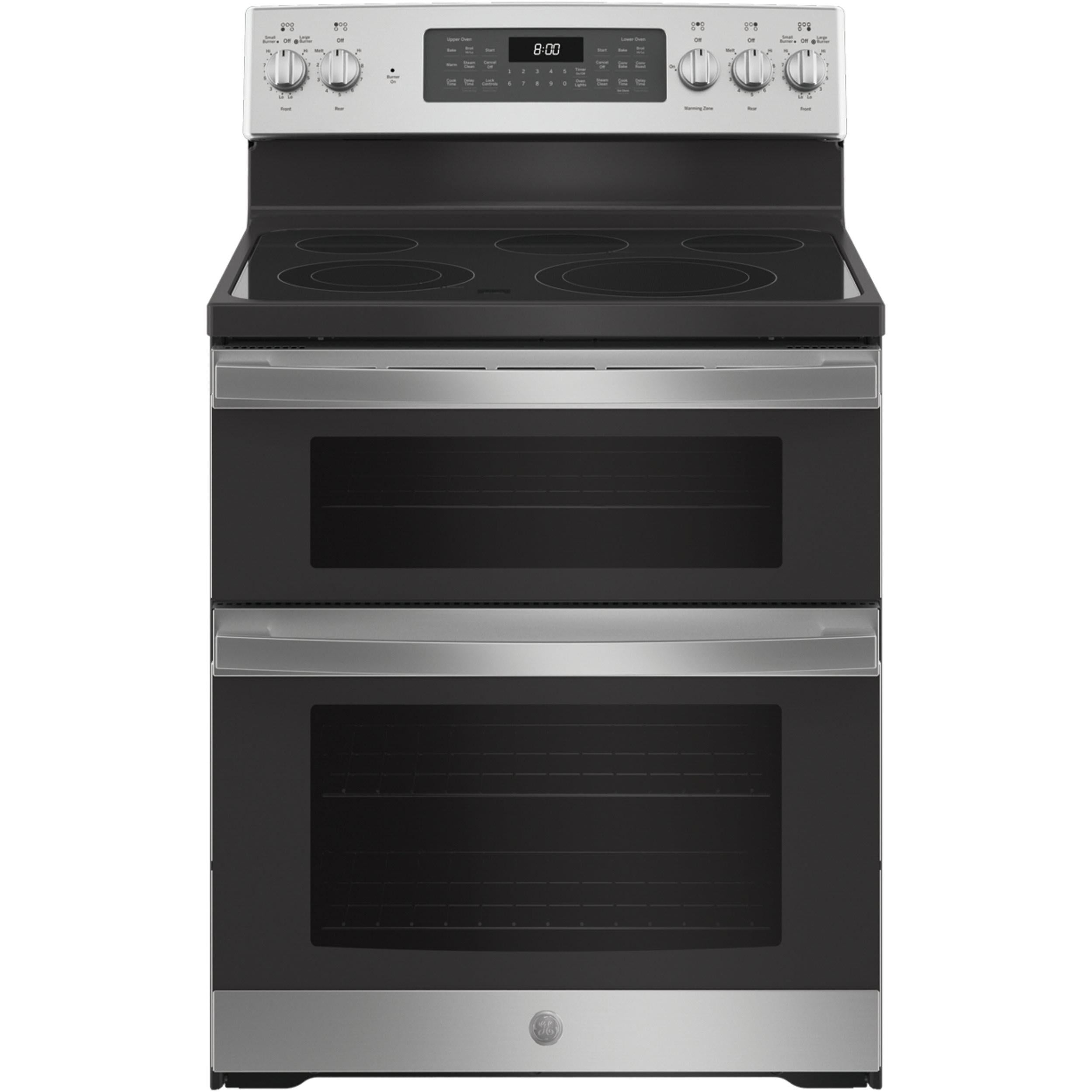

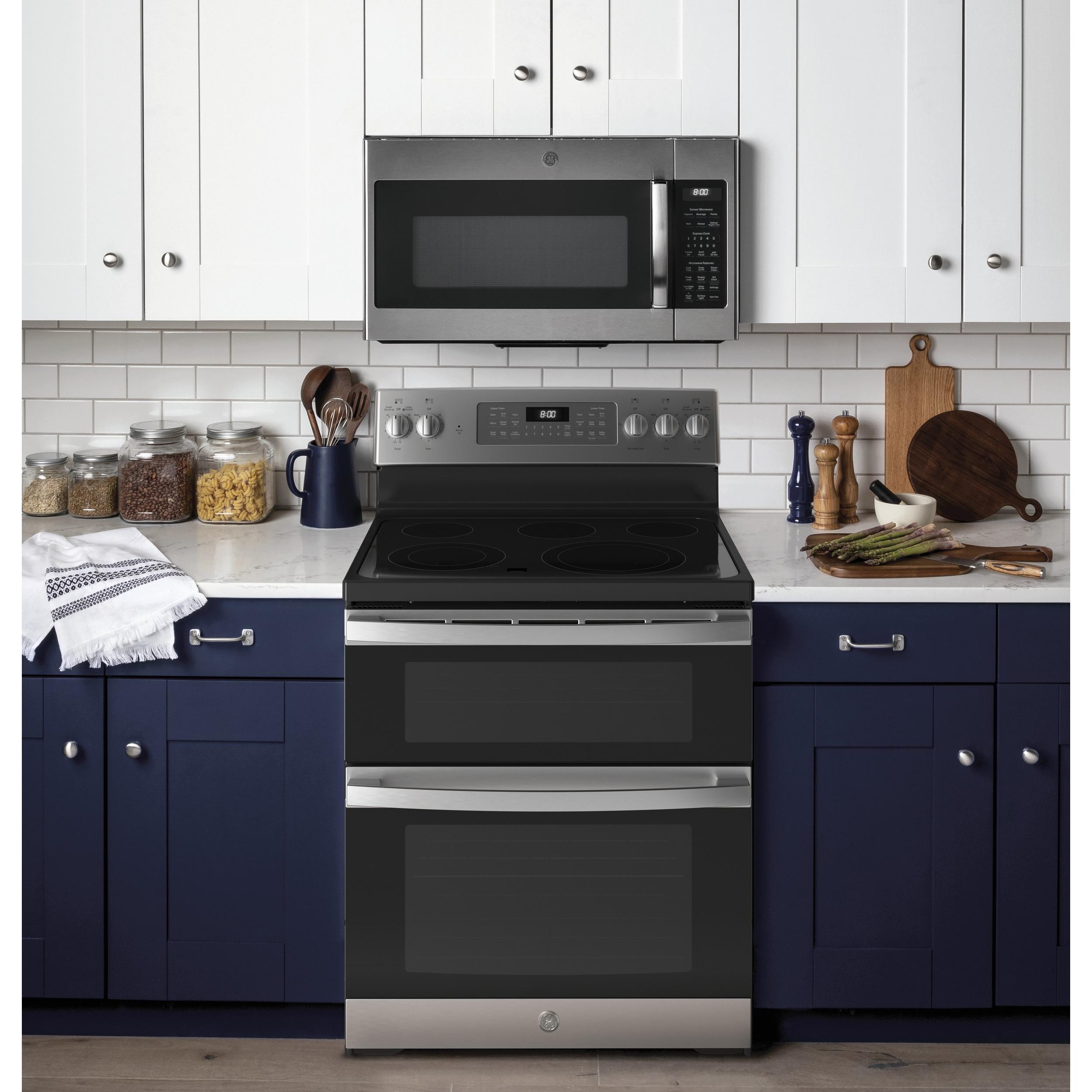

×This 30-inch wide GE double oven electric range features 5 cooktop elements, digital temperature display, Convection Technology and a total oven capacity of 6.6 cu.ft.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Fuel Type
Electric
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
Steam Clean (Both Ovens)
Cooktop
Burners/Elements
5
Burners/Elements Output
• Left Front Power Boil Element 3100 W
• Left Rear Element: 1200 W
• Right Front Element: 3000 W
• Right Rear Element 1200 W
• Center Warming Zone Element: 80 W
• Left Rear Element: 1200 W
• Right Front Element: 3000 W
• Right Rear Element 1200 W
• Center Warming Zone Element: 80 W
Burner/Element Size
• Left Front Power Boil Element: 9"/6"
• Left Rear Element: 6"
• Right Front Element: 12"/9"
• Right Rear Element: 6"
• Center Warming Zone Element: 6"
• Left Rear Element: 6"
• Right Front Element: 12"/9"
• Right Rear Element: 6"
• Center Warming Zone Element: 6"
Elements
Smoothtop
Oven
Capacity (cu. ft.)
• Total Capacity: 6.6 cu.ft.
• Upper Oven: 2.2 cu.ft.
• Lower Oven: 4.4 cu.ft.
• Upper Oven: 2.2 cu.ft.
• Lower Oven: 4.4 cu.ft.
Number of Ovens
Double
Programs
• Bake
• Broil
• Convection (Lower Oven)
• Broil
• Convection (Lower Oven)
Features
Technologies
Convection Technology
Control Lock
Yes
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Additional Information
• Gray Patterned Ceramic Glass One-Piece Upswept Surface
• Melt Setting
• 1 Heating Element "ON" Indicator Light
• 1 Hot Surface Indicator Lights
• 1 Halogen Light (Lower)
• 1 Incandescent Light (Upper)
• Preheat Notification (Both Ovens)
• 6-Pass Bake Element (Lower)
• 6-Pass Broil Element (Both Ovens)
• 8-Pass Bake Element (Upper)
• 2 Upper / 7 Lower Rack Positions
• 3 Heavy-Duty Oven Racks
• Melt Setting
• 1 Heating Element "ON" Indicator Light
• 1 Hot Surface Indicator Lights
• 1 Halogen Light (Lower)
• 1 Incandescent Light (Upper)
• Preheat Notification (Both Ovens)
• 6-Pass Bake Element (Lower)
• 6-Pass Broil Element (Both Ovens)
• 8-Pass Bake Element (Upper)
• 2 Upper / 7 Lower Rack Positions
• 3 Heavy-Duty Oven Racks
Electrical Information
Information
• 240 V / 208 V
• 40 A
• 40 A
Certifications and Approvals
Sabbath/Star-K
Yes
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
47.5 inch(es) / 120.65 cm
Depth (Without Handles)
25.75 inch(es) / 65.40 cm
Depth (Including Handles)
28.25 inch(es) / 71.76 cm
Weight
203.99 lb(s) / 92.53 kg
Additional Dimensions
• Oven Interior Dimensions (Lower): 24" X 17 1/2" X 18 1/4"
• Oven Interior Dimensions (Upper): 24" X 8-7/8" X 18-1/4"
• Depth with Door Open: 45"
• Height to Cooking Surface: 35 3/4" - 36 1/2"
• Oven Interior Dimensions (Upper): 24" X 8-7/8" X 18-1/4"
• Depth with Door Open: 45"
• Height to Cooking Surface: 35 3/4" - 36 1/2"
Shipping Dimensions
Width
32.5 inch(es) / 82.55 cm
Height
51 inch(es) / 129.54 cm
Depth
30.2 inch(es) / 76.71 cm
Weight
226 lb(s) / 102.51 kg
Warranty
Warranty
Limited 1 Year Parts and Labor
UPC
UPC#
084691855569
