DESCRIPTION

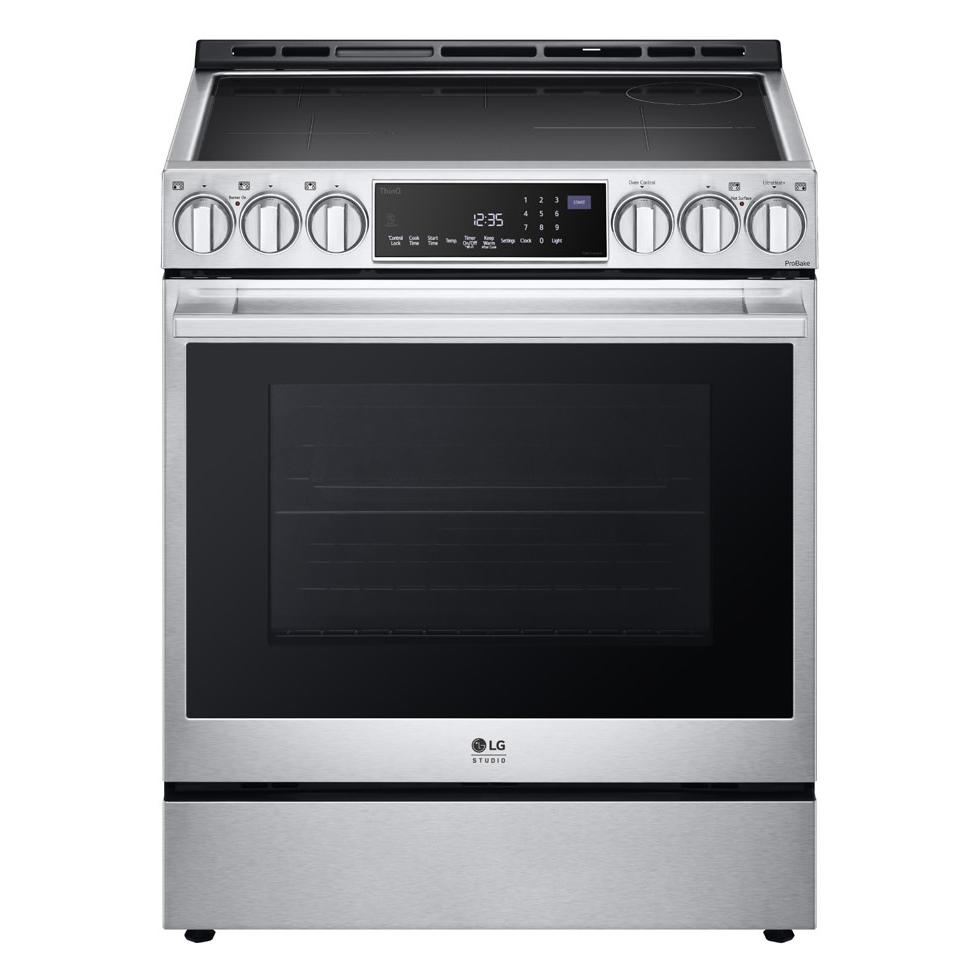

×LG Studio 30-inch slide-in induction range features ProBake Convection™ technology, Air Fry setting, 4 induction elements, 1 radiant element and a total oven capacity of 6.3 cu. ft.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Fuel Type
Electric - Induction
Installation Type
Slide-in
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Cooktop
Burners/Elements
5
Burners/Elements Output
• Element - Left Rear: 1800 W (Boost)/ 1300 W (Normal)
• Element - Right Rear: 100 W
• Element - Left Front: 3200 W (Boost)/ 2100 W (Normal)
• Element - Right Front: 4300 W (Boost)/ 1300 W (Normal)
• Center Warming Zone: 1800 W (Boost)/ 1300 W (Normal)
• Element - Right Rear: 100 W
• Element - Left Front: 3200 W (Boost)/ 2100 W (Normal)
• Element - Right Front: 4300 W (Boost)/ 1300 W (Normal)
• Center Warming Zone: 1800 W (Boost)/ 1300 W (Normal)
Burner/Element Size
• Element - Left Rear: 6"
• Element - Right Rear: 6"
• Element - Left Front: 8"
• Element - Right Front: 11"
• Center Warming Zone: 6"
• Element - Right Rear: 6"
• Element - Left Front: 8"
• Element - Right Front: 11"
• Center Warming Zone: 6"
Elements
Induction
Oven
Capacity (cu. ft.)
6.3 cu. ft.
Number of Ovens
Single
Programs
Oven Modes: Bake, Convection Bake, Convection Roast, Broil High, Broil Low, Warm, Proof, Frozen Meal, Air Fry, Air Sous-Vide, EasyClean, Self Clean
Features
Technologies
• ProBake Convection™
• EasyClean®: EasyClean® Time: 10mins
• GoCook Smart Oven Light
• Printproof ™ Finish
• Oven Door Feature: InstaView + WideView™
• ThinQ® (Wifi Enabled)
• Smart Features: Check & Control, Voice Control, Smart Recipe (3rd Party Recipe App): Sidechef, SmartDiagnosis™
• EasyClean®: EasyClean® Time: 10mins
• GoCook Smart Oven Light
• Printproof ™ Finish
• Oven Door Feature: InstaView + WideView™
• ThinQ® (Wifi Enabled)
• Smart Features: Check & Control, Voice Control, Smart Recipe (3rd Party Recipe App): Sidechef, SmartDiagnosis™
Control Lock
Yes
Convection
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Wi-Fi
Yes
Additional Information
• No of Radiant Elements: 4 inductions and 1 radiant
• Broil Element (Watt): Sheath 4200W/ 6 Pass
• Convection (Watt): Sheath 2500W
• Convection Fan: Dual Speed (High/Low)
• Oven Control Features: Glass Touch
• Convection Conversion
• No. of Rack Positions: 7
• Control Lock: Key + Cooktop Lock
• Automatic Safety Shut-Down: After 12 hours
• Cooktop Control Type: Front Control Knobs
• Back lighting
• Display: LED/ White
• Language: English
• Clock: 12 hr or 24 hr (option)
• Kitchen Timer
• Timed Cook
• Temperature Unit of Measure: Fahrenheit / Celsius
• Cooking Complete Reminder Volume: Beeper (Hi, Lo, Off)
• Knobs: AL Forging
• Cooktop Finish: Black Ceramic + Grey Pattern
• Broil Element (Watt): Sheath 4200W/ 6 Pass
• Convection (Watt): Sheath 2500W
• Convection Fan: Dual Speed (High/Low)
• Oven Control Features: Glass Touch
• Convection Conversion
• No. of Rack Positions: 7
• Control Lock: Key + Cooktop Lock
• Automatic Safety Shut-Down: After 12 hours
• Cooktop Control Type: Front Control Knobs
• Back lighting
• Display: LED/ White
• Language: English
• Clock: 12 hr or 24 hr (option)
• Kitchen Timer
• Timed Cook
• Temperature Unit of Measure: Fahrenheit / Celsius
• Cooking Complete Reminder Volume: Beeper (Hi, Lo, Off)
• Knobs: AL Forging
• Cooktop Finish: Black Ceramic + Grey Pattern
Drawer Features
Storage
Yes
Electrical Information
Information
• Amp Rating at 208V: 48.5A
• Amp Rating at 240V: 49.6A
• KW Rating at 208V: 10.1kW
• KW Rating at 240V: 11.9kW
• Required Power Supply (amp): 40A
• Amp Rating at 240V: 49.6A
• KW Rating at 208V: 10.1kW
• KW Rating at 240V: 11.9kW
• Required Power Supply (amp): 40A
Certifications and Approvals
Sabbath/Star-K
Yes
Accessories
Included
• Gliding Rack: 1
• Heavy Duty Rack: 2
• Air Fry Rack: 1
• Temp Probe
• Spray Bottle
• Cooktop Cream/ Cleaner
• Heavy Duty Rack: 2
• Air Fry Rack: 1
• Temp Probe
• Spray Bottle
• Cooktop Cream/ Cleaner
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
37.25 inch(es) / 94.62 cm
Depth (Without Handles)
26.87 inch(es) / 68.26 cm
Depth (Including Handles)
29.37 inch(es) / 74.61 cm
Weight
197.6 lb(s) / 89.63 kg
Additional Dimensions
• Oven Interior Dimensions (W x H x D): 24 7/8" x 21 3/8" x 20"
• Height to Cooking Surface: 36"
• Drawer Dimensions (W x H x D): 22 3/16" x 4 1/2" x 16 3/8"
• Height to Cooking Surface: 36"
• Drawer Dimensions (W x H x D): 22 3/16" x 4 1/2" x 16 3/8"
Shipping Dimensions
Width
32.5 inch(es) / 82.55 cm
Height
44 inch(es) / 111.76 cm
Depth
30.5 inch(es) / 77.47 cm
Weight
235.41 lb(s) / 106.78 kg
Warranty
Warranty
Parts & Labor: 2 Years
UPC
UPC#
195174020555
